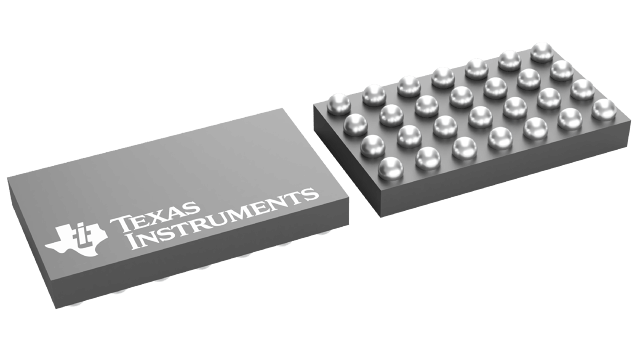

TPS66021YBGR Texas Instruments - Yeehing Electronics
USB-C/PD 20V sink & 5V source power switch with 5V dead battery LDO
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.865 |
100 — 249 | 0.665 |
250 — 999 | 0.49 |
1,000 + | 0.24 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TPS66021YBGR Datasheet |
More Information
The TPS6602x is a full-featured power switch multiplexer that contains an integrated 5-V Source power path and a 4-V to 22-V Sink power path. The 5-V Source path limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the selected current-limit threshold. Each power path supports overtemperature and reverse current protection. VBUS has overvoltage protection with its level being set by an optional external resistor divider. If no overvoltage protection is desired, it may be disabled by grounding the OVP terminal. The TPS6602x series supports a fault pin that indicates overcurrent and overtemperature events.
