Texas Instruments

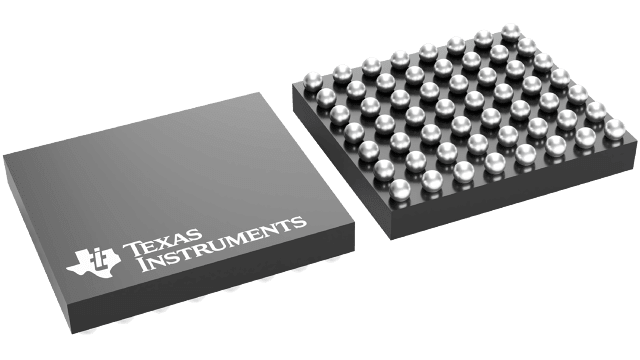

TPS68470YFFT
TPS68470YFFT
Regular price
$0.89 USD
Regular price
Sale price
$0.89 USD
Unit price
per
Couldn't load pickup availability
TPS68470YFFT Texas Instruments - Yeehing Electronics
Power Management IC (PMIC) with flash LED driver and ref clock generation for compact camera module
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.578 |
| 100 — 249 | 2.259 |
| 250 — 999 | 1.584 |
| 1,000 + | 0.89 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 3 Channel |
| Output Current | 1 A |
| Input Voltage | 3.3 V |
| Operating Frequency | 3 MHz to 6 MHz |
| Supply Current - Max | 5 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-56 |
| Series | TPS68470 |
| Packaging | Reel |
| Operating Temperature Range | 0 C to + 85 C |
| Product | LED Drivers |
| Type | Power Management Unit with LED Flash Driver and Reference Clock Generation |
| Brand | Texas Instruments |
| Topology | Buck |
| Pd - Power Dissipation | 1.6 W |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | Driver ICs |
For more information, please refer to datasheet
Documents
| TPS68470YFFT Datasheet |
More Information
The TPS68470 device is an advanced power management unit that powers a Compact Camera Module (CCM), generates the clock for the image sensor, drives a dual LED for Flash and incorporates two LED drivers for general purpose indicators . The TPS68470 is capable of generating all needed power rails in a CCM.
