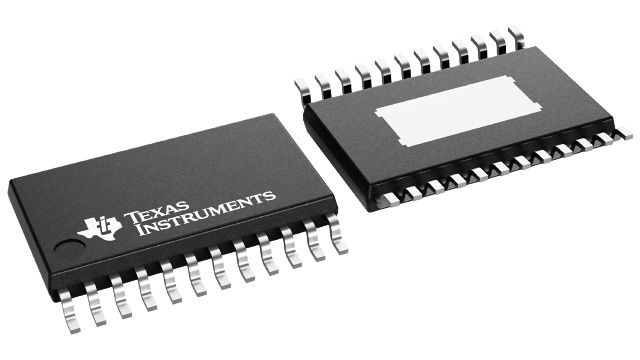

TPS70348PWP Texas Instruments - Yeehing Electronics

1-A, dual-channel ultra-low-dropout voltage regulator with power good & enable

Pricing (USD)

Quantity	Unit Price
1 — 99	5.708
100 — 249	4.653
250 — 999	3.657
1,000 +	2.17

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HTSSOP-24
Output Voltage	3.3 V, 1.5 V
Output Current	1 A
Number of Outputs	2 Output
Polarity	Positive
Quiescent Current	250 uA
Input Voltage MAX	6 V
Input Voltage MIN	2.7 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	160 mV
Series	TPS70348
Packaging	Tube
Height	1.15 mm
Length	7.8 mm
Operating Temperature Range	- 40 C to + 125 C
Width	4.4 mm
Brand	Texas Instruments
Dropout Voltage - Max	250 mV at 1 A
Voltage Regulation Accuracy	2 %
Ib - Input Bias Current	185 uA
Line Regulation	0.01 % / V
Load Regulation	1 mV
Moisture Sensitive	Yes
Operating Supply Current	180 uA
Pd - Power Dissipation	4.115 W
Product Type	LDO Voltage Regulators
Factory Pack Quantity	60
Subcategory	PMIC - Power Management ICs
Unit Weight	0.003460 oz

For more information, please refer to datasheet

Documents

TPS70348PWP Datasheet

More Information

The TPS703xx family of devices is designed to provide a complete power management solution for TI DSP, processor power, ASIC, FPGA, and digital applications where dual output voltage regulators are required. Easy programmability of the sequencing function makes this family ideal for any TI DSP application with power sequencing requirements. Differentiated features, such as accuracy, fast transient response, SVS supervisory circuit (power-on reset), manual reset inputs, and enable function, provide a complete system solution.
