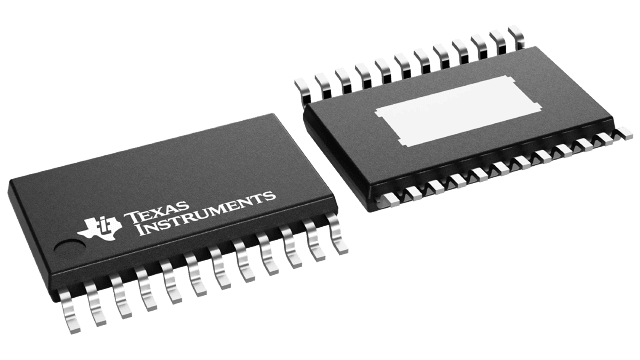

TPS70358PWP


YeeHing #: Y012-TPS70358PWP
Inventory: 8800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS70358PWP Texas Instruments - Yeehing Electronics

1-A, dual-channel ultra-low-dropout voltage regulator with power good & enable

Pricing (USD)

Quantity Unit Price
1 — 99 5.708
100 — 249 4.653
250 — 999 3.657
1,000 + 2.17

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LDO Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case HTSSOP-24
Output Voltage 3.3 V, 2.5 V
Output Current 1 A
Number of Outputs 2 Output
Polarity Positive
Quiescent Current 250 uA
Input Voltage MAX 6 V
Input Voltage MIN 2.7 V
Output Type Fixed
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Dropout Voltage 160 mV
Series TPS70358
Packaging Tube
Height 1.15 mm
Length 7.8 mm
Operating Temperature Range - 40 C to + 125 C
Width 4.4 mm
Brand Texas Instruments
Dropout Voltage - Max 250 mV at 1 A
Voltage Regulation Accuracy 2 %
Ib - Input Bias Current 185 uA
Line Regulation 0.01 % / V
Load Regulation 1 mV
Moisture Sensitive Yes
Operating Supply Current 180 uA
Pd - Power Dissipation 4.115 W
Product Type LDO Voltage Regulators
Factory Pack Quantity 60
Subcategory PMIC - Power Management ICs
Unit Weight 0.003460 oz

For more information, please refer to datasheet

Documents

TPS70358PWP Datasheet

More Information

The TPS703xx family of devices is designed to provide a complete power management solution for TI DSP, processor power, ASIC, FPGA, and digital applications where dual output voltage regulators are required. Easy programmability of the sequencing function makes this family ideal for any TI DSP application with power sequencing requirements. Differentiated features, such as accuracy, fast transient response, SVS supervisory circuit (power-on reset), manual reset inputs, and enable function, provide a complete system solution.
