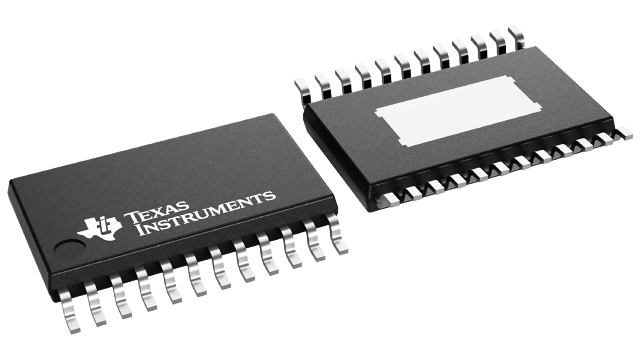

TPS70445PWPR


YeeHing #: Y012-TPS70445PWPR
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS70445PWPR Texas Instruments - Yeehing Electronics

1-A, dual-channel ultra-low-dropout voltage regulator with power good & independent enable

Pricing (USD)

Quantity Unit Price
1 — 99 4.519
100 — 249 3.684
250 — 999 2.896
1,000 + 1.72

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LDO Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case HTSSOP-24
Output Voltage 3.3 V, 1.2 V
Output Current 1 A
Number of Outputs 2 Output
Polarity Positive
Quiescent Current 250 uA
Input Voltage MAX 6 V
Input Voltage MIN 2.7 V
Output Type Fixed
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Dropout Voltage 160 mV
Series TPS70445
Packaging Reel
Height 1.15 mm
Length 7.8 mm
Operating Temperature Range - 40 C to + 125 C
Width 4.4 mm
Brand Texas Instruments
Dropout Voltage - Max 250 mV at 1 A
Voltage Regulation Accuracy 2 %
Ib - Input Bias Current 185 uA
Line Regulation 0.01 % / V
Load Regulation 1 mV
Moisture Sensitive Yes
Operating Supply Current 180 uA
Pd - Power Dissipation 4.58 W
Product Type LDO Voltage Regulators
Reference Voltage 1.22 V
Factory Pack Quantity 2000
Subcategory PMIC - Power Management ICs
Unit Weight 0.003460 oz

For more information, please refer to datasheet

Documents

TPS70445PWPR Datasheet

More Information

The TPS704xx family of devices consists of dual-output, low-dropout voltage regulators with integrated SVS (RESET, POR, or power on reset) and power good (PG) functions. These devices are capable of supplying 1 A and 2 A by regulator 1 and regulator 2 respectively. Quiescent current is typically 185 µA at full load. Differentiated features, such as accuracy, fast transient response, SVS supervisory circuit (power on reset), manual reset input, and independent enable functions provide a complete system solution.
