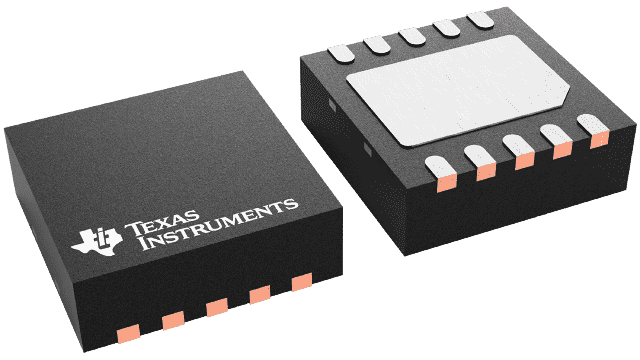

TPS71202DRCT Texas Instruments - Yeehing Electronics
250-mA, dual-channel low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.444 |
| 100 — 249 | 2.018 |
| 250 — 999 | 1.45 |
| 1,000 + | 0.76 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-10 |
| Output Voltage | 1.2 V to 5.5 V |
| Output Current | 250 mA |
| Number of Outputs | 2 Output |
| Polarity | Positive |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 2.7 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 125 mV |
| Series | TPS71202 |
| Packaging | Reel |
| Height | 0.9 mm |
| Length | 3 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Width | 3 mm |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 230 mV at 250 mA |
| Voltage Regulation Accuracy | 1.5 % |
| Ib - Input Bias Current | 190 uA |
| Line Regulation | 0.05 %/V |
| Load Regulation | 0.8 %/mA |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 1.92 W |
| Product Type | LDO Voltage Regulators |
| Reference Voltage | 1.225 V |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000921 oz |
For more information, please refer to datasheet
Documents
| TPS71202DRCT Datasheet |
More Information
The TPS712xx family of low-dropout (LDO) voltage regulators is tailored to noise-sensitive and RF applications. These products feature dual 250 mA LDOs with ultralow noise, high power-supply rejection ratio (PSRR), and fast transient and start-up response. Each regulator output is stable with low-cost 2.2 µF ceramic output capacitors and features very low dropout voltages (125 mV typical at 250 mA). Each regulator achieves fast start-up times (approximately 60 µs with a 0.001 µF bypass capacitor) while consuming very low quiescent current (300 µA typical with both outputs enabled). When the device is placed in standby mode, the supply current is reduced to less than 0.3 µA typical. Each regulator exhibits approximately 32 µrms of output voltage noise with VOUT = 2.8 V and a 0.01 µF noise reduction (NR) capacitor. Applications with analog components that are noise-sensitive, such as portable RF electronics, will benefit from high PSRR, low noise, and fast line and load transient features. The TPS712 family is offered in a thin 3mm × 3mm SON package and is fully specified from 40°C to +125°C (TJ).
