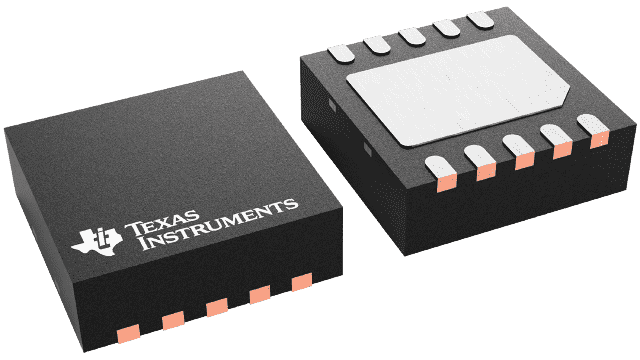

TPS71334DRCR Texas Instruments - Yeehing Electronics

250-mA, dual-channel low-dropout voltage regulator with enable & RESET with delay

Pricing (USD)

Quantity	Unit Price
1 — 99	2.249
100 — 249	1.857
250 — 999	1.334
1,000 +	0.70

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VSON-10
Output Voltage	1.2 V to 5.5 V/3.3 V
Output Current	250 mA
Number of Outputs	2 Output
Polarity	Positive
Input Voltage MAX	5.5 V
Input Voltage MIN	2.7 V
Output Type	Adjustable, Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	125 mV
Series	TPS71334
Packaging	Reel
Height	0.9 mm
Length	3 mm
Operating Temperature Range	- 40 C to + 125 C
Width	3 mm
Brand	Texas Instruments
Dropout Voltage - Max	230 mV at 250 mA
Voltage Regulation Accuracy	1.5 %
Ib - Input Bias Current	190 uA
Line Regulation	0.05 %/V
Load Regulation	0.8 %/mA
Moisture Sensitive	Yes
Operating Supply Current	300 uA
Pd - Power Dissipation	1.92 W
Product Type	LDO Voltage Regulators
Reference Voltage	1.225 V
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000921 oz

For more information, please refer to datasheet

Documents

TPS71334DRCR Datasheet

More Information

The TPS713xx family of low-dropout (LDO) voltage regulators is tailored to noise-sensitive and RF appli- cations. These products feature dual 250 mA LDOs with ultralow noise, high power-supply rejection ratio (PSRR), and fast transient and start-up response. These devices also feature an integrated supply voltage supervisor (SVS) that monitors the voltage at OUT2 and will assert if the voltage falls to 95% (typical) of the measured output. Each regulator output is stable with low-cost 2.2 µF ceramic output capacitors and features very low dropout voltages (125 mV typical at 250 mA). Each regulator achieves fast start-up times (approximately 60 µs with a 0.001 µF bypass capacitor) while consuming very low quiescent current (300 µA typical with both outputs enabled). When the device is placed in standby mode, the supply current is reduced to less than 0.3 µA typical. Each regulator exhibits approximately 32 µVrms of output voltage noise with VOUT = 2.8 V and a 0.01 µF noise reduction (NR) capacitor. Applications with analog components that are noise-sensitive, such as portable RF electronics, will benefit from high PSRR, low noise, and fast line and load transient features. The TPS713xx family is offered in a thin 3mm x 3mm SON package and is fully specified from –40°C to +125°C (TJ).
