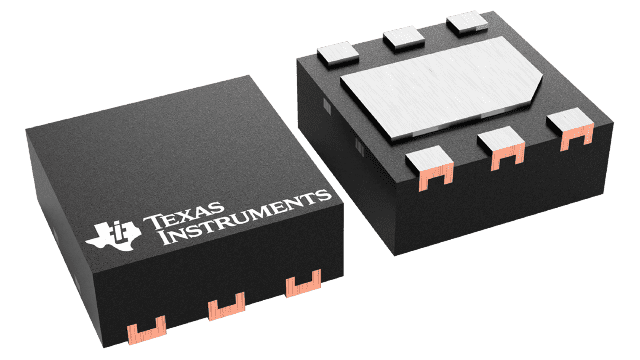

TPS71718QDRVRQ1


YeeHing #: Y012-TPS71718QDRVRQ1
Inventory: 6200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS71718QDRVRQ1 Texas Instruments - Yeehing Electronics

Automotive 150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable

Pricing (USD)

Quantity Unit Price
1 — 99 1.119
100 — 249 0.861
250 — 999 0.634
1,000 + 0.32

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LDO Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case WSON-6
Output Voltage 1.8 V
Output Current 150 mA
Number of Outputs 1 Output
Input Voltage MAX 6.5 V
Input Voltage MIN 2.5 V
Output Type Fixed
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Dropout Voltage 170 mV
Qualification AEC-Q100
Series TPS717-Q1
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Product LDO Regulators
Type Low Dropout Linear Regulator
Brand Texas Instruments
Dropout Voltage - Max 300 mV
PSRR / Ripple Rejection - Typ 45 dB
Voltage Regulation Accuracy 3 %
Line Regulation 125 uV/V
Load Regulation 120 uV/mA
Operating Supply Current 45 uA
Product Type LDO Voltage Regulators
Factory Pack Quantity 3000
Subcategory PMIC - Power Management ICs
Unit Weight 0.000328 oz

For more information, please refer to datasheet

Documents

TPS71718QDRVRQ1 Datasheet

More Information

The TPS717-Q1 family of low-dropout (LDO), low-power linear regulators offers very high power-supply rejection (PSRR) while maintaining very low 45-µA ground current in an ultra-small, five-pin SOT package. The family uses an advanced BiCMOS process and a PMOSFET pass device to achieve fast start-up, very low noise, excellent transient response, and excellent PSRR performance. The TPS717-Q1 is stable with a 1-µF ceramic output capacitor and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations. The device family is fully specified from TJ, TA = –40°C to 125°C and is offered in a small SOT (SC70-5) package, a 2-mm × 2-mm WSON-6 package with a thermal pad, and a 1.5-mm × 1.5-mm WSON-6 package, which are ideal for small form factor portable equipment (such as wireless handsets and PDAs). The TPS717-Q1 family of LDOs is qualified for AEC-Q100 grade 1.
