TPS71750QDRVRQ1 Texas Instruments - Yeehing Electronics

Automotive 150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable

Pricing (USD)

Quantity	Unit Price
1 — 99	1.119
100 — 249	0.861
250 — 999	0.634
1,000 +	0.32

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

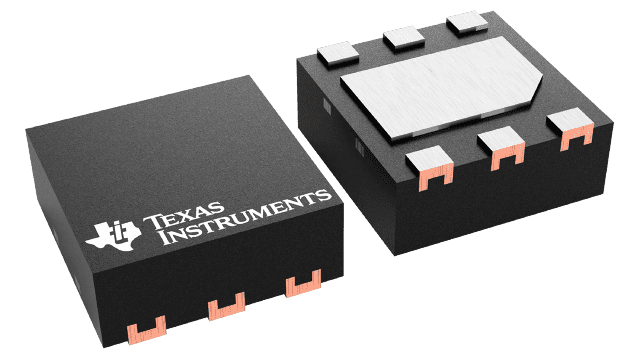

Package / Case	WSON-6
Output Voltage	5 V
Output Current	150 mA
Number of Outputs	1 Output
Input Voltage MAX	6.5 V
Input Voltage MIN	2.5 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	170 mV
Qualification	AEC-Q100
Series	TPS717-Q1
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Product	LDO Regulators
Type	Low Dropout Linear Regulator
Brand	Texas Instruments
Dropout Voltage - Max	300 mV
PSRR / Ripple Rejection - Typ	45 dB
Voltage Regulation Accuracy	3 %
Line Regulation	125 uV/V
Load Regulation	120 uV/mA
Operating Supply Current	45 uA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000328 oz

For more information, please refer to datasheet

Documents

TPS71750QDRVRQ1 Datasheet

More Information

The TPS717-Q1 family of low-dropout (LDO), low-power linear regulators offers very high power-supply rejection (PSRR) while maintaining very low 45-µA ground current in an ultra-small, five-pin SOT package. The family uses an advanced BiCMOS process and a PMOSFET pass device to achieve fast start-up, very low noise, excellent transient response, and excellent PSRR performance. The TPS717-Q1 is stable with a 1-µF ceramic output capacitor and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations. The device family is fully specified from TJ, TA = –40°C to 125°C and is offered in a small SOT (SC70-5) package, a 2-mm × 2-mm WSON-6 package with a thermal pad, and a 1.5-mm × 1.5-mm WSON-6 package, which are ideal for small form factor portable equipment (such as wireless handsets and PDAs). The TPS717-Q1 family of LDOs is qualified for AEC-Q100 grade 1.
