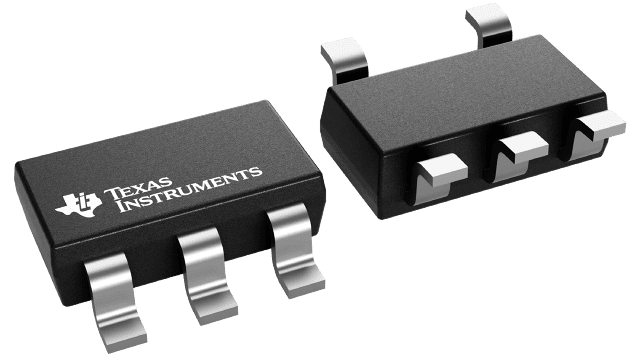

TPS72301DDCT Texas Instruments - Yeehing Electronics
200-mA, negative, adjustable low-dropout voltage regulator with enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.462 |
100 — 249 | 2.158 |
250 — 999 | 1.513 |
1,000 + | 0.85 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SOT-23-Thin-5 |
Output Voltage | - 10 V to - 1.162 V |
Output Current | 200 mA |
Number of Outputs | 1 Output |
Input Voltage MAX | - 2.7 V |
Input Voltage MIN | - 10 V |
Output Type | Adjustable |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 280 mV |
Series | TPS72301 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Product | LDO Regulators |
Type | High PSRR Negative Output Low Dropout Linear Regulator |
Brand | Texas Instruments |
Dropout Voltage - Max | 500 mV |
PSRR / Ripple Rejection - Typ | 48 dB |
Voltage Regulation Accuracy | +/- 1 % |
Line Regulation | 0.04 %/V |
Load Regulation | 0.002 %/mA |
Moisture Sensitive | Yes |
Operating Supply Current | 130 uA |
Product Type | LDO Voltage Regulators |
Reference Voltage | - 1.186 V |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000459 oz |
For more information, please refer to datasheet
Documents
TPS72301DDCT Datasheet |
More Information
The TPS723 low-dropout (LDO) negative voltage regulator offers an ideal combination of features to support low noise applications. This device is capable of operating with input voltages from –10 V to –2.7 V, and support outputs from –10 V to –1.2 V. This regulator is stable with small, low-cost ceramic capacitors, and include enable (EN) and noise reduction (NR) functions. Thermal short-circuit and over-current protections are provided by internal detection and shutdown logic. High PSRR (65 dB at 1 kHz) and low noise (60 µVRMS) make the TPS723 ideal for low-noise applications.
