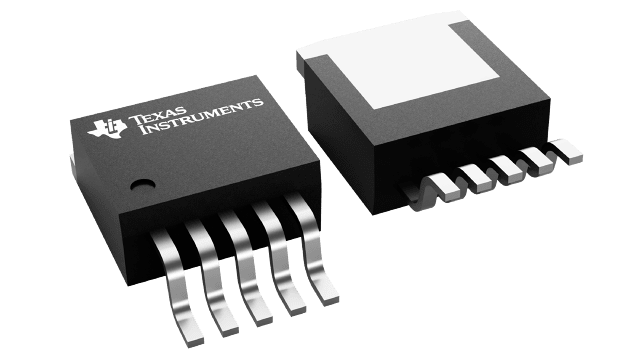

TPS72516KTTT Texas Instruments - Yeehing Electronics

1-A, ultra-low-dropout voltage regulator with enable & RESET

Pricing (USD)

Quantity	Unit Price
1 — 99	3.002
100 — 249	2.63
250 — 999	1.844
1,000 +	1.04

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS72516KTTT Datasheet

More Information

The TPS725xx family of 1-A low-dropout (LDO) linear regulators has fixed voltage options available that are commonly used to power the latest DSPs, FPGAs, and microcontrollers. An adjustable option ranging from 1.22 V to 5.5 V is also available. The integrated supervisory circuitry provides an active low RESET signal when the output falls out of regulation. The no capacitor/any capacitor feature allows the customer to tailor output transient performance as needed. Therefore, compared to other regulators capable of providing the same output current, this family of regulators can provide a stand-alone power supply solution or a post regulator for a switch mode power supply.
