TPS72711YFFT Texas Instruments - Yeehing Electronics

250-mA, ultra-low-IQ, low-dropout voltage regulator with enable

Pricing (USD)

Quantity	Unit Price
1 — 99	1.005
100 — 249	0.773
250 — 999	0.569
1,000 +	0.28

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS72711YFFT Datasheet

More Information

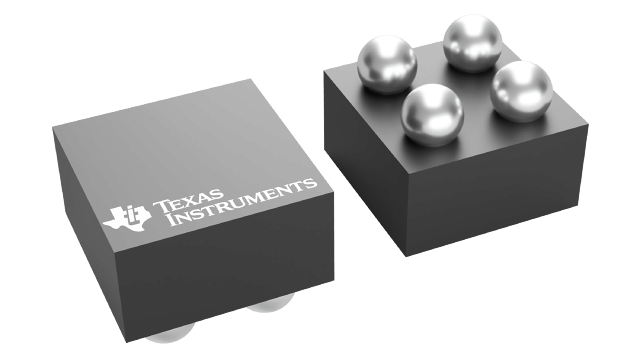

The TPS727 family of low-dropout (LDO) linear regulators are ultralow quiescent current LDOs with excellent line and ultra-fast load transient performance and are designed for power-sensitive applications. The LDO output voltage level is preset by the use of innovative factory EEPROM programming. A precision band-gap and error amplifier provides overall 2% accuracy over load, line, and temperature extremes. The TPS727 family is available in 1.5-mm × 1.5-mm SON and wafer chip-scale (WCSP) packages that make the devices ideal for handheld applications. This family of devices is fully specified over a temperature range of TJ = –40°C to +125°C.
