Texas Instruments
TPS72730YFFT
TPS72730YFFT
Couldn't load pickup availability

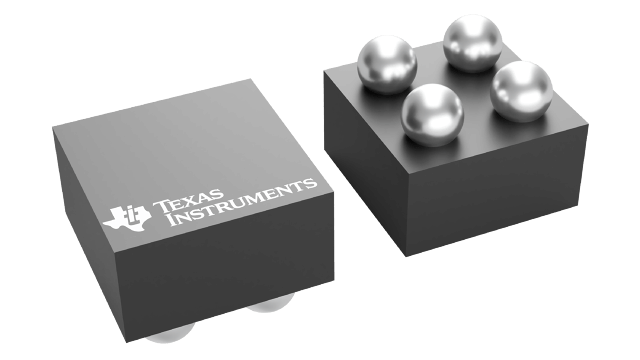

TPS72730YFFT Texas Instruments - Yeehing Electronics
250-mA, ultra-low-IQ, low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.376 |
| 100 — 249 | 1.058 |
| 250 — 999 | 0.779 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-4 |
| Output Current | 150 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 130 mV |
| Series | TPS72730 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Operating Supply Current | 9 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000035 oz |
For more information, please refer to datasheet
Documents
| TPS72730YFFT Datasheet |
More Information
The TPS727 family of low-dropout (LDO) linear regulators are ultralow quiescent current LDOs with excellent line and ultra-fast load transient performance and are designed for power-sensitive applications. The LDO output voltage level is preset by the use of innovative factory EEPROM programming. A precision band-gap and error amplifier provides overall 2% accuracy over load, line, and temperature extremes. The TPS727 family is available in 1.5-mm × 1.5-mm SON and wafer chip-scale (WCSP) packages that make the devices ideal for handheld applications. This family of devices is fully specified over a temperature range of TJ = –40°C to +125°C.
