Description

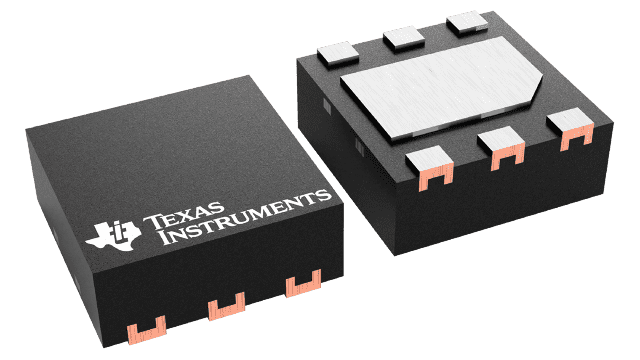

TPS728330185DRVR Texas Instruments - Yeehing Electronics
200-mA, low-dropout voltage regulator with low-IQ & enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.06 |
| 100 — 249 | 0.815 |
| 250 — 999 | 0.6 |
| 1,000 + | 0.30 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-6 |
| Output Voltage | 3.3 V, 1.85 V |
| Output Current | 200 mA |
| Number of Outputs | 2 Output |
| Input Voltage MAX | 6.5 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 230 mV |
| Series | TPS728330185 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Output Voltage Range | - |
| Load Regulation | 75 uV/mA |
| Operating Supply Current | 50 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
| TPS728330185DRVR Datasheet |
More Information
The TPS728xx series of low-dropout linear regulators (LDOs), with a selectable dual-voltage level output, is designed specially for applications that require two levels of output voltage regulation. Programming fuses and memory cards, reducing leakage effects, and conserving power in nanometric processes are some application examples.
