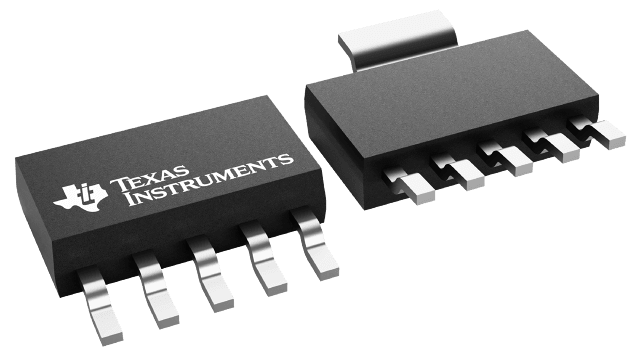

Enhanced product, cap-free NMOS, 400-mA low dropout regulator with reverse current protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.377 |
| 100 — 249 | 3.569 |
| 250 — 999 | 2.805 |
| 1,000 + | 1.67 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-223-6 |
| Output Voltage | 1.2 V to 5.5 V |
| Output Current | 400 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 1.7 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 75 mV |
| Series | TPS73601-EP |
| Packaging | Reel |
| Operating Temperature Range | - 55 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 200 mV at 400 mA |
| Voltage Regulation Accuracy | 0.5 % |
| Line Regulation | 0.01 % / V |
| Load Regulation | 0.002 %/mA |
| Moisture Sensitive | Yes |
| Operating Supply Current | 400 uA |
| Pd - Power Dissipation | 2.22 W |
| Product Type | LDO Voltage Regulators |
| Reference Voltage | 1.2 V |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Part # Aliases | V62/06626-01YE |
| Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
| TPS73601MDCQREP Datasheet |
More Information
The TPS736xx family of low-dropout (LDO) linear voltage regulators uses a new topologyan NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low ESR and allows operation without a capacitor. It also provides high reverse blockage (low reverse current) and ground-pin current that is nearly constant over all values of output current.
