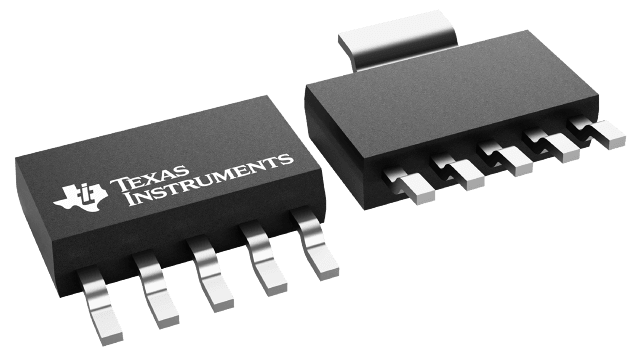

TPS73701DCQRG4 Texas Instruments - Yeehing Electronics

1-A, ultra-low-dropout voltage regulator with reverse current protection & enable

Pricing (USD)

Quantity Unit Price
1 — 99 1.189
100 — 249 0.982
250 — 999 0.706
1,000 + 0.37

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LDO Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case SOT-223-6
Output Voltage 1.2 V to 5.5 V
Output Current 1 A
Number of Outputs 1 Output
Polarity Positive
Input Voltage MAX 5.5 V
Input Voltage MIN 2.2 V
Output Type Adjustable
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Dropout Voltage 130 mV
Series TPS73701
Packaging Reel
Height 1.6 mm
Length 6.5 mm
Operating Temperature Range - 40 C to + 125 C
Width 3.5 mm
Brand Texas Instruments
Dropout Voltage - Max 500 mV at 1 A
Voltage Regulation Accuracy 1 %
Line Regulation 0.01 % / V
Load Regulation 0.002 %/mA
Moisture Sensitive Yes
Operating Supply Current 400 uA
Pd - Power Dissipation 2.22 W
Product Type LDO Voltage Regulators
Reference Voltage 1.21 V
Factory Pack Quantity 2500
Subcategory PMIC - Power Management ICs
Unit Weight 0.004233 oz

For more information, please refer to datasheet

Documents

TPS73701DCQRG4 Datasheet

More Information

The TPS737xx family of linear low-dropout (LDO) voltage regulators uses an NMOS pass element in a voltage-follower configuration. This topology is relatively insensitive to output capacitor value and ESR, allowing a wide variety of load configurations. Load transient response is excellent, even with a small 1-µF ceramic output capacitor. The NMOS topology also allows very low dropout.
