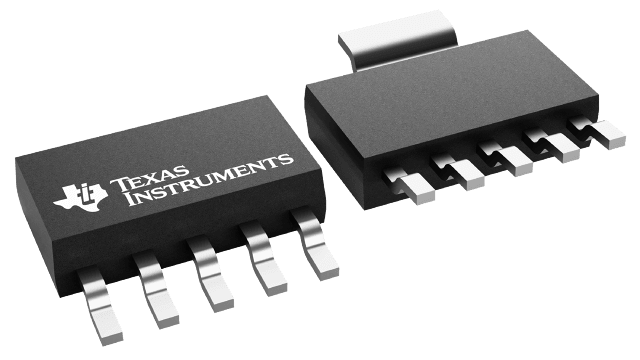

TPS73801DCQR Texas Instruments - Yeehing Electronics
1-A, 20-V, adjustable low-dropout voltage regulator with reverse current and voltage protection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.866 |
100 — 249 | 1.635 |
250 — 999 | 1.147 |
1,000 + | 0.65 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SOT-223-6 |
Output Voltage | Adj |
Output Current | 1 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 20 V |
Input Voltage MIN | 2.2 V |
Output Type | Adjustable |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 300 mV |
Series | TPS73801 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
Dropout Voltage - Max | 300 mV |
Output Voltage Range | 1.21 V to 20 V |
PSRR / Ripple Rejection - Typ | 63 dB |
Line Regulation | 1.5 mV |
Load Regulation | 2 mV |
Moisture Sensitive | Yes |
Operating Supply Current | 1 mA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
TPS73801DCQR Datasheet |
More Information
The TPS73801 is a low-dropout (LDO) regulator optimized for fast transient response. The device can supply 1.0 A of output current with a dropout voltage of 300 mV. Operating quiescent current is 1 mA, dropping to less than 1 µA in shutdown. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the TPS73801 regulators have very low output noise, which makes them ideal for sensitive RF supply applications.
