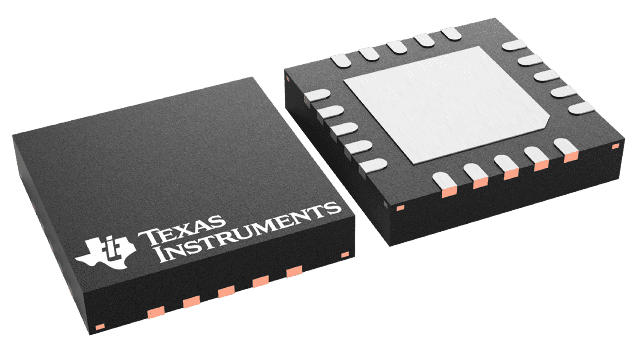

TPS74301RGWR Texas Instruments - Yeehing Electronics
1.5-A, low-VIN (0.8-V), high-accuracy, adjustable ultra-low-dropout voltage regulator with PG
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.562 |
100 — 249 | 2.904 |
250 — 999 | 2.283 |
1,000 + | 1.23 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | VQFN-20 |
Output Voltage | 796 mV to 3.6 V |
Output Current | 1.5 A |
Number of Outputs | 1 Output |
Polarity | Positive |
Input Voltage MAX | 5.5 V |
Input Voltage MIN | 0.8 V |
Output Type | Adjustable |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Dropout Voltage | 55 mV |
Series | TPS74301 |
Packaging | Reel |
Height | 0.9 mm |
Length | 5 mm |
Operating Temperature Range | - 40 C to + 85 C |
Width | 5 mm |
Brand | Texas Instruments |
Dropout Voltage - Max | 100 mV at 1.5 A |
Voltage Regulation Accuracy | 1 % |
Development Kit | TPS74301EVM-118 |
Ib - Input Bias Current | 2 mA |
Line Regulation | 0.0005 % / V |
Load Regulation | 0.04 %/A |
Moisture Sensitive | Yes |
Operating Supply Current | 3 mA |
Pd - Power Dissipation | 2.74 W |
Product Type | LDO Voltage Regulators |
Reference Voltage | 0.804 V |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
TPS74301RGWR Datasheet |
More Information
The TPS743xx low-dropout (LDO) linear regulators provide an easy-to-use robust power management solution for a wide variety of applications. The TRACK pin allows the output to track an external supply. This feature is useful in minimizing the stress on ESD structures that are present between the CORE and I/O power pins of many processors. The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility allows the user to configure a solution that meets the sequencing requirements of FPGAs, DSPs, and other applications with special start-up requirements.
