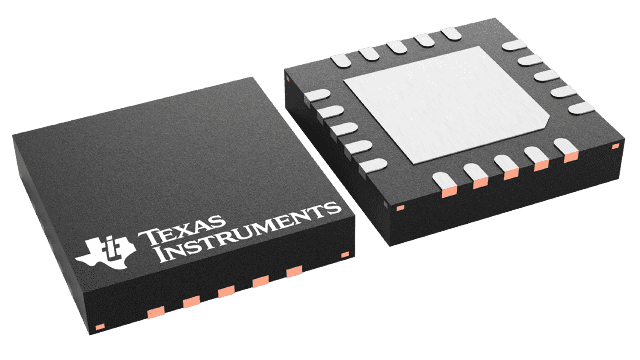

TPS74301RGWT Texas Instruments - Yeehing Electronics

1.5-A, low-VIN (0.8-V), high-accuracy, adjustable ultra-low-dropout voltage regulator with PG

Pricing (USD)

Quantity	Unit Price
1 — 99	4.274
100 — 249	3.485
250 — 999	2.739
1,000 +	1.63

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-20
Output Voltage	796 mV to 3.6 V
Output Current	1.5 A
Number of Outputs	1 Output
Polarity	Positive
Input Voltage MAX	5.5 V
Input Voltage MIN	0.8 V
Output Type	Adjustable
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Dropout Voltage	55 mV
Series	TPS74301
Packaging	Reel
Height	0.9 mm
Length	5 mm
Operating Temperature Range	- 40 C to + 85 C
Width	5 mm
Brand	Texas Instruments
Dropout Voltage - Max	100 mV at 1.5 A
Voltage Regulation Accuracy	1 %
Development Kit	TPS74301EVM-118
Ib - Input Bias Current	2 mA
Line Regulation	0.0005 % / V
Load Regulation	0.04 %/A
Moisture Sensitive	Yes
Operating Supply Current	3 mA
Pd - Power Dissipation	2.74 W
Product Type	LDO Voltage Regulators
Reference Voltage	0.804 V
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002469 oz

For more information, please refer to datasheet

Documents

TPS74301RGWT Datasheet

More Information

The TPS743xx low-dropout (LDO) linear regulators provide an easy-to-use robust power management solution for a wide variety of applications. The TRACK pin allows the output to track an external supply. This feature is useful in minimizing the stress on ESD structures that are present between the CORE and I/O power pins of many processors. The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility allows the user to configure a solution that meets the sequencing requirements of FPGAs, DSPs, and other applications with special start-up requirements.
