TPS75100DSKR


YeeHing #: Y012-TPS75100DSKR
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

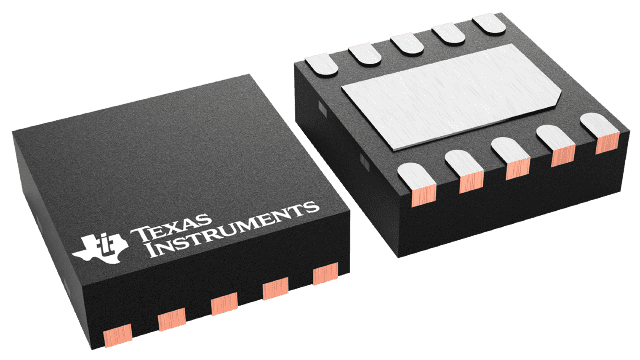

TPS75100DSKR Texas Instruments - Yeehing Electronics

Low Dropout, Two-Bank LED driver with PWM brightness control with 10mA/ch

Pricing (USD)

Quantity Unit Price
1 — 99 1.084
100 — 249 0.895
250 — 999 0.643
1,000 + 0.34

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS75100DSKR Datasheet

More Information

The TPS7510x linear low dropout (LDO) matching LED current source is optimized for low-power keypad and navigation pad LED backlighting applications. The device provides a constant current to up to four unmatched LEDs organized in two banks of two LEDs each in a common-cathode topology. Without an external resistor, the current source defaults to a factory-programmable, preset current level with ±0.5% accuracy (typical). An optional external resistor can be used to set initial brightness to user-programmable values with higher accuracy. Brightness can be varied from off to full brightness by inputting a pulse width modulation (PWM) signal on each enable pin (ENx, where x indicates LED bank A or B). Each bank has independent enable and brightness control, but current matching is done to all four channels concurrently. The input supply range is ideally suited for single-cell Li-Ion battery supplies and the TPS7510x can provide up to 25 mA per LED.
