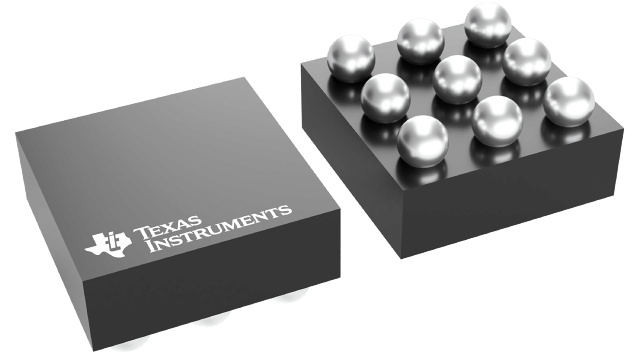

TPS75100YFFR Texas Instruments - Yeehing Electronics
Low Dropout, Two-Bank LED driver with PWM brightness control with 10mA/ch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.084 |
| 100 — 249 | 0.895 |
| 250 — 999 | 0.643 |
| 1,000 + | 0.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Output Current | 10 mA |
| Input Voltage | 2.7 V to 5.5 V |
| Supply Current - Max | 25 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-9 |
| Series | TPS75100 |
| Packaging | Reel |
| Features | Brightness Control/Dimming, Enable/Shutdown, PWM Control, Thermal Shutdown |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000063 oz |
For more information, please refer to datasheet
Documents
More Information
The TPS7510x linear low dropout (LDO) matching LED current source is optimized for low-power keypad and navigation pad LED backlighting applications. The device provides a constant current to up to four unmatched LEDs organized in two banks of two LEDs each in a common-cathode topology. Without an external resistor, the current source defaults to a factory-programmable, preset current level with ±0.5% accuracy (typical). An optional external resistor can be used to set initial brightness to user-programmable values with higher accuracy. Brightness can be varied from off to full brightness by inputting a pulse width modulation (PWM) signal on each enable pin (ENx, where x indicates LED bank A or B). Each bank has independent enable and brightness control, but current matching is done to all four channels concurrently. The input supply range is ideally suited for single-cell Li-Ion battery supplies and the TPS7510x can provide up to 25 mA per LED.
