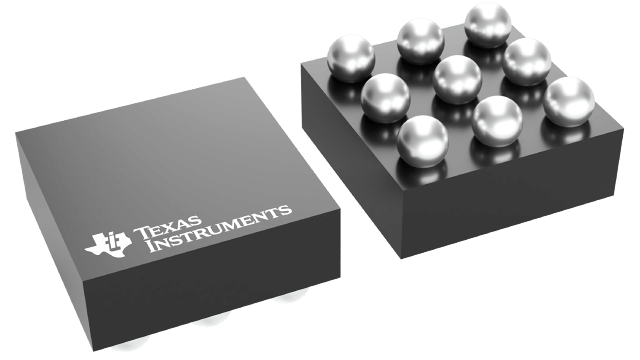

TPS75103YFFR Texas Instruments - Yeehing Electronics
low-dropout, two-bank LED driver with PWM brightness control
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.084 |
100 — 249 | 0.895 |
250 — 999 | 0.643 |
1,000 + | 0.34 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LED Lighting Drivers |
RoHS | Y |
Number of Channels | 4 Channel |
Output Current | 25 mA |
Input Voltage | 2.7 V to 5.5 V |
Supply Current - Max | 0.3 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-9 |
Series | TPS75103 |
Packaging | Reel |
Features | Brightness Control/Dimming, Enable/Shutdown, PWM Control, Thermal Shutdown |
Operating Temperature Range | - 40 C to + 85 C |
Output Type | Constant Current |
Type | Linear |
Brand | Texas Instruments |
Topology | LDO |
Pd - Power Dissipation | 704 mW |
Product Type | LED Lighting Drivers |
Factory Pack Quantity | 3000 |
Subcategory | Driver ICs |
For more information, please refer to datasheet
Documents
TPS75103YFFR Datasheet |
More Information
The TPS7510x linear low dropout (LDO) matching LED current source is optimized for low-power keypad and navigation pad LED backlighting applications. The device provides a constant current to up to four unmatched LEDs organized in two banks of two LEDs each in a common-cathode topology. Without an external resistor, the current source defaults to a factory-programmable, preset current level with ±0.5% accuracy (typical). An optional external resistor can be used to set initial brightness to user-programmable values with higher accuracy. Brightness can be varied from off to full brightness by inputting a pulse width modulation (PWM) signal on each enable pin (ENx, where x indicates LED bank A or B). Each bank has independent enable and brightness control, but current matching is done to all four channels concurrently. The input supply range is ideally suited for single-cell Li-Ion battery supplies and the TPS7510x can provide up to 25 mA per LED.
