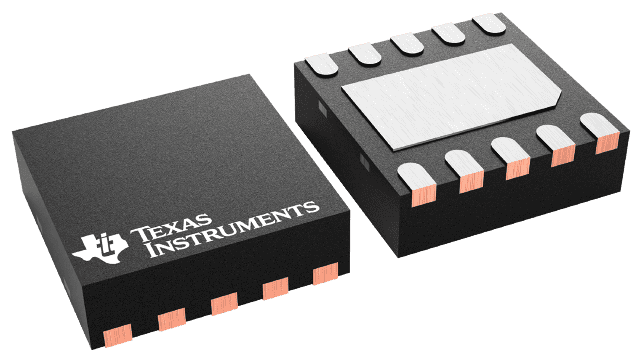

TPS75105DSKR Texas Instruments - Yeehing Electronics

Low Dropout, Two-Bank LED driver with PWM brightness control with 25mA/ch

Pricing (USD)

Quantity	Unit Price
1 — 99	1.084
100 — 249	0.895
250 — 999	0.643
1,000 +	0.39

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	2 Channel
Output Current	5 mA
Input Voltage	5.5 V
Supply Current - Max	25 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WSON-10
Series	TPS75105
Packaging	Reel
Features	Brightness Control/Dimming, Enable/Shutdown, PWM Control, Thermal Shutdown
Operating Temperature Range	- 40 C to + 85 C
Product	LED Drivers
Type	LED Driver
Brand	Texas Instruments
Pd - Power Dissipation	1650 mW
Product Type	LED Lighting Drivers
Factory Pack Quantity	3000
Subcategory	Driver ICs
Unit Weight	0.000519 oz

For more information, please refer to datasheet

Documents

TPS75105DSKR Datasheet

More Information

The TPS7510x linear low dropout (LDO) matching LED current source is optimized for low-power keypad and navigation pad LED backlighting applications. The device provides a constant current to up to four unmatched LEDs organized in two banks of two LEDs each in a common-cathode topology. Without an external resistor, the current source defaults to a factory-programmable, preset current level with ±0.5% accuracy (typical). An optional external resistor can be used to set initial brightness to user-programmable values with higher accuracy. Brightness can be varied from off to full brightness by inputting a pulse width modulation (PWM) signal on each enable pin (ENx, where x indicates LED bank A or B). Each bank has independent enable and brightness control, but current matching is done to all four channels concurrently. The input supply range is ideally suited for single-cell Li-Ion battery supplies and the TPS7510x can provide up to 25 mA per LED.
