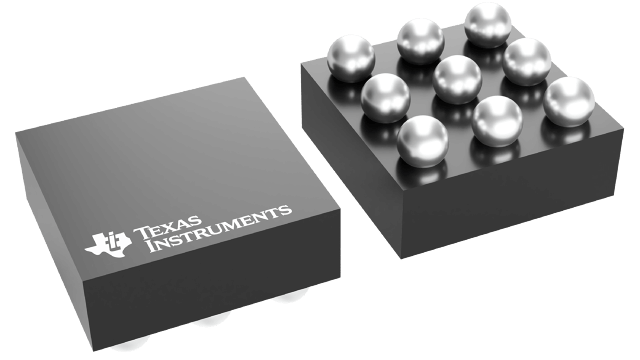

TPS75105YFFT Texas Instruments - Yeehing Electronics

Low Dropout, Two-Bank LED driver with PWM brightness control with 25mA/ch

Pricing (USD)

Quantity	Unit Price
1 — 99	1.301
100 — 249	1.075
250 — 999	0.772
1,000 +	0.41

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	4 Channel
Output Current	25 mA
Input Voltage	2.7 V to 5.5 V
Supply Current - Max	0.3 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-9
Series	TPS75105
Packaging	Reel
Features	Brightness Control/Dimming, Enable/Shutdown, PWM Control, Thermal Shutdown
Operating Temperature Range	- 40 C to + 85 C
Output Type	Constant Current
Type	Linear
Brand	Texas Instruments
Topology	LDO
Pd - Power Dissipation	704 mW
Product Type	LED Lighting Drivers
Factory Pack Quantity	250
Subcategory	Driver ICs

For more information, please refer to datasheet

Documents

TPS75105YFFT Datasheet

More Information

The TPS7510x linear low dropout (LDO) matching LED current source is optimized for low-power keypad and navigation pad LED backlighting applications. The device provides a constant current to up to four unmatched LEDs organized in two banks of two LEDs each in a common-cathode topology. Without an external resistor, the current source defaults to a factory-programmable, preset current level with ±0.5% accuracy (typical). An optional external resistor can be used to set initial brightness to user-programmable values with higher accuracy. Brightness can be varied from off to full brightness by inputting a pulse width modulation (PWM) signal on each enable pin (ENx, where x indicates LED bank A or B). Each bank has independent enable and brightness control, but current matching is done to all four channels concurrently. The input supply range is ideally suited for single-cell Li-Ion battery supplies and the TPS7510x can provide up to 25 mA per LED.
