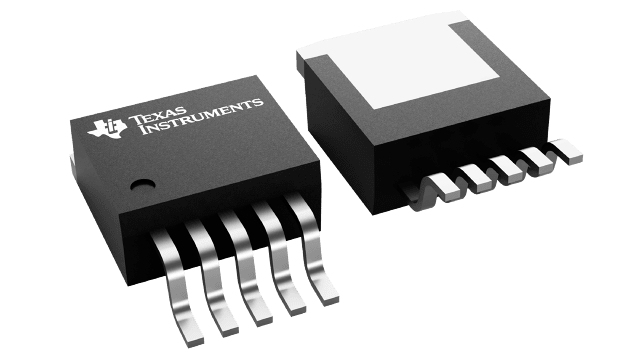

TPS75533KTTR Texas Instruments - Yeehing Electronics
5-A, ultra-low-dropout voltage regulator with power good & enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 5.336 |
100 — 249 | 4.35 |
250 — 999 | 3.419 |
1,000 + | 1.44 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -40 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 500 |
Package | Pins | TO-263 (KTT) | 5 |
For more information, please refer to datasheet
Documents
TPS75533KTTR Datasheet |
More Information
The TPS755xx family of 5-A low dropout (LDO) regulators contains four fixed voltage option regulators with integrated power-good (PG) and an adjustable voltage option regulator. These devices are capable of supplying 5 A of output current with a dropout of 250 mV (TPS75533). Therefore, the device is capable of performing a 3.3-V to 2.5-V conversion. Quiescent current is 125 uA at full load and drops down to less than 1 uA when the device is disabled. The TPS755xx is designed to have fast transient response for large load current changes.
