Texas Instruments

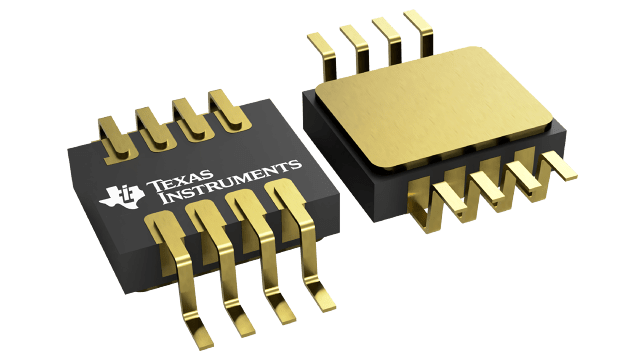

TPS76901SHKQ
TPS76901SHKQ
Regular price
$61.32 USD
Regular price
Sale price
$61.32 USD
Unit price
per
Couldn't load pickup availability
TPS76901SHKQ Texas Instruments - Yeehing Electronics
High Temperature Ultra Low-Power 100-mA Low-Dropout Line Regulators
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 101.948 |
| 100 — 249 | 98.882 |
| 250 — 999 | 82.325 |
| 1,000 + | 61.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | CFP-8 |
| Output Voltage | 1.2 V to 4.5 V |
| Output Current | 100 mA |
| Input Voltage MAX | 13.5 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 210 C |
| Dropout Voltage | 71 mV |
| Series | TPS76901-HT |
| Packaging | Tube |
| Operating Temperature Range | - 55 C to + 210 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 71 mV |
| Load Regulation | 23.4 mV |
| Operating Supply Current | 17 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 1 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| TPS76901SHKQ Datasheet |
More Information
The TPS76901 low-dropout (LDO) voltage regulator offers the benefits of low dropout voltage, ultralow-power operation, and miniaturized packaging. This regulator features low dropout voltages and ultralow quiescent current compared to conventional LDO regulators. The TPS76901 is ideal for micropower operations and where board space is at a premium.
