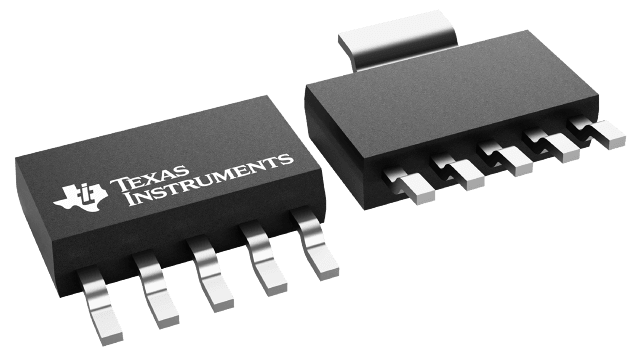

TPS79401DCQR Texas Instruments - Yeehing Electronics
250-mA, low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.891 |
| 100 — 249 | 1.561 |
| 250 — 999 | 1.122 |
| 1,000 + | 0.68 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-223-6 |
| Output Voltage | 1.2 V to 5.5 V |
| Output Current | 250 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 220 uA |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 2.7 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Dropout Voltage | 155 mV |
| Series | TPS79401 |
| Packaging | Reel |
| Height | 1.6 mm |
| Length | 6.5 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Width | 3.5 mm |
| Brand | Texas Instruments |
| Ib - Input Bias Current | 170 uA |
| Line Regulation | 0.05 % / V |
| Load Regulation | 10 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 170 uA |
| Product Type | LDO Voltage Regulators |
| Reference Voltage | 1.2246 V |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
| TPS79401DCQR Datasheet |
More Information
The TPS794xx family of low-dropout (LDO) linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in small outline, MSOP-8 PowerPAD and SOT223-6 packages. Each device in the family is stable with a small 2.2-µF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (for example, 155 mV at 250 mA). Each device achieves fast start-up times (approximately 50 µs with a 0.001-µF bypass capacitor) while consuming low quiescent current (170 µA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than µA. The TPS79428 exhibits approximately 32 µVRMS of output voltage noise at 2.8 V output with a 0.1-µF bypass capacitor. Applications with analog components that are noise-sensitive, such as portable RF electronics, benefit from the high PSRR and low noise features as well as the fast response time.
