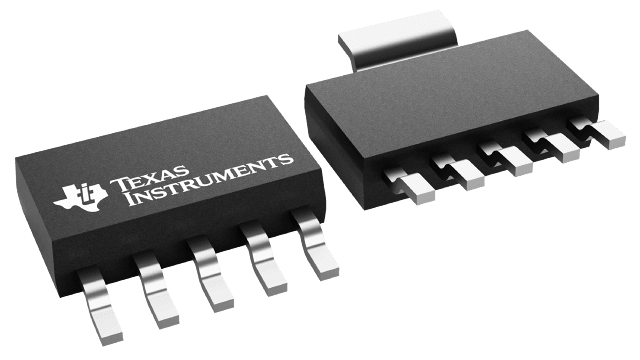

TPS79601DCQ Texas Instruments - Yeehing Electronics
1-A, low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.933 |
| 100 — 249 | 2.57 |
| 250 — 999 | 1.802 |
| 1,000 + | 1.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-223-6 |
| Output Voltage | 1.2 V to 5.5 V |
| Output Current | 1 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 2.7 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 220 mV |
| Series | TPS79601 |
| Packaging | Tube |
| Height | 1.6 mm |
| Length | 6.5 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Width | 3.5 mm |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 365 mV at 1 A |
| Voltage Regulation Accuracy | 2 % |
| Ib - Input Bias Current | 265 uA |
| Line Regulation | 0.05 % / V |
| Load Regulation | 5 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 260 uA |
| Product Type | LDO Voltage Regulators |
| Reference Voltage | 1.225 V |
| Factory Pack Quantity | 78 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
| TPS79601DCQ Datasheet |
More Information
The TPS796 family of low-dropout (LDO) low-power linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in small outline, 3 × 3 VSON, SOT223-6, and TO-263 packages. Each device in the family is stable with a small, 1-µF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (for example, 250 mV at 1 A). Each device achieves fast start-up times (approximately 50 µs with a 0.001-µF bypass capacitor) while consuming very low quiescent current (265 µA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 µA. The TPS79630 exhibits approximately 40 µVRMS of output voltage noise at 3.0-V output, with a 0.1-µF bypass capacitor. Applications with analog components that are noise sensitive, such as portable RF electronics, benefit from the high PSRR, low noise features, and need fast response time.
