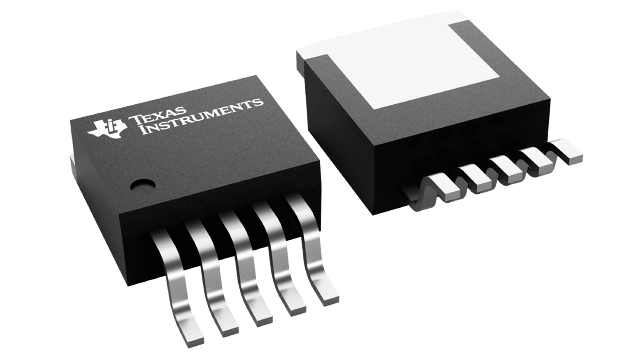

TPS79601KTTR Texas Instruments - Yeehing Electronics

1-A, low-dropout voltage regulator with enable

Pricing (USD)

Quantity	Unit Price
1 — 99	3.129
100 — 249	2.742
250 — 999	1.922
1,000 +	1.08

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-263-5
Output Voltage	1.2 V to 5.5 V
Output Current	1 A
Number of Outputs	1 Output
Polarity	Positive
Input Voltage MAX	5.5 V
Input Voltage MIN	2.7 V
Output Type	Adjustable
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	220 mV
Series	TPS79601
Packaging	Reel
Height	4.58 mm
Length	10.16 mm
Operating Temperature Range	- 40 C to + 125 C
Width	8.42 mm
Brand	Texas Instruments
Dropout Voltage - Max	365 mV at 1 A
Voltage Regulation Accuracy	2 %
Ib - Input Bias Current	265 uA
Line Regulation	0.05 % / V
Load Regulation	5 mV
Moisture Sensitive	Yes
Operating Supply Current	260 uA
Product Type	LDO Voltage Regulators
Reference Voltage	1.225 V
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.051355 oz

For more information, please refer to datasheet

Documents

TPS79601KTTR Datasheet

More Information

The TPS796 family of low-dropout (LDO) low-power linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in small outline, 3 × 3 VSON, SOT223-6, and TO-263 packages. Each device in the family is stable with a small, 1-µF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (for example, 250 mV at 1 A). Each device achieves fast start-up times (approximately 50 µs with a 0.001-µF bypass capacitor) while consuming very low quiescent current (265 µA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 µA. The TPS79630 exhibits approximately 40 µVRMS of output voltage noise at 3.0-V output, with a 0.1-µF bypass capacitor. Applications with analog components that are noise sensitive, such as portable RF electronics, benefit from the high PSRR, low noise features, and need fast response time.
