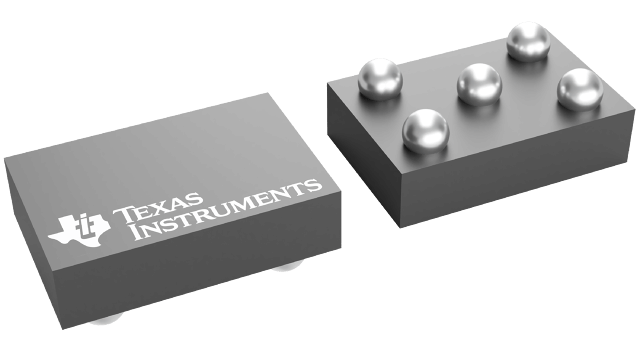

TPS799L54YZYR Texas Instruments - Yeehing Electronics
200-mA, low-IQ, low-dropout voltage regulator in wafer chip scale packaging
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.951 |
100 — 249 | 0.732 |
250 — 999 | 0.539 |
1,000 + | 0.27 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 90 mV |
Series | TPS799L54 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
Operating Supply Current | 40 uA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
TPS799L54YZYR Datasheet |
More Information
The TPS799L family of low-dropout (LDO), low-power linear regulators offers excellent ac performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient response are provided while consuming a very low 40 µA (typical) ground current.
