Texas Instruments
TPS799L57YZYR
TPS799L57YZYR
Regular price
$0.27 USD
Regular price
Sale price
$0.27 USD
Unit price
per
Couldn't load pickup availability
TPS799L57YZYR Texas Instruments - Yeehing Electronics
200-mA, low-IQ, low-dropout voltage regulator in wafer chip scale packaging
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.951 |
| 100 — 249 | 0.732 |
| 250 — 999 | 0.539 |
| 1,000 + | 0.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

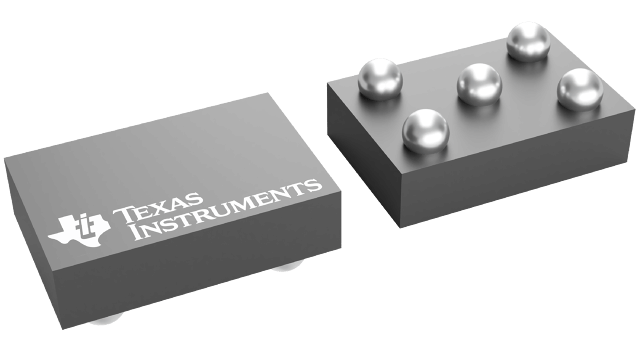

| Package / Case | DSBGA-5 |
| Output Voltage | 5.7 V |
| Output Current | 200 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 6.5 V |
| Input Voltage MIN | 2.7 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 90 mV |
| Series | TPS799L57 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LDO Regulators |
| Type | Low Dropout Linear Regulator |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 160 mV |
| PSRR / Ripple Rejection - Typ | 70 dB |
| Voltage Regulation Accuracy | 1 % |
| Line Regulation | 0.02 %/V |
| Load Regulation | 0.002 %/mA |
| Operating Supply Current | 40 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
| TPS799L57YZYR Datasheet |
More Information
The TPS799L family of low-dropout (LDO), low-power linear regulators offers excellent ac performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient response are provided while consuming a very low 40 µA (typical) ground current.
