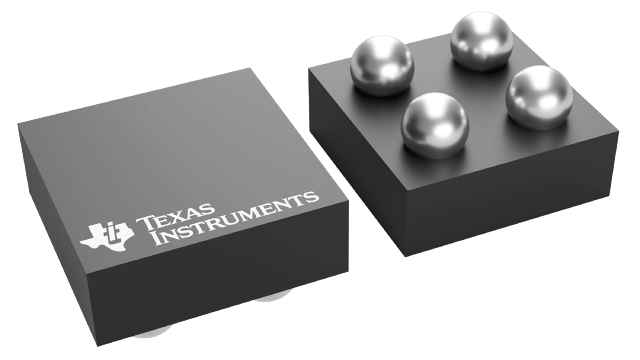

TPS7A0515PYKAR Texas Instruments - Yeehing Electronics

200-mA, ultra-low-IQ, high-accuracy, low-dropout voltage regulator with enable

Pricing (USD)

Quantity	Unit Price
1 — 99	0.27
100 — 249	0.183
250 — 999	0.141
1,000 +	0.08

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	DSBGA-4
Output Voltage	1.5 V
Output Current	200 mA
Number of Outputs	1 Output
Polarity	Positive
Input Voltage MAX	5.5 V
Input Voltage MIN	1.4 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	204 mV
Series	TPS7A05
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Product	LDO Voltage Regulators
Type	Ultra Small
Brand	Texas Instruments
Dropout Voltage - Max	469 mV
Output Voltage Range	-
PSRR / Ripple Rejection - Typ	40 dB
Voltage Regulation Accuracy	1 %
Line Regulation	5 mV
Load Regulation	20 mV
Product Type	LDO Voltage Regulators
Factory Pack Quantity	12000
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

TPS7A0515PYKAR Datasheet

More Information

The TPS7A05 is an ultra-small, low quiescent current low-dropout regulator (LDO) that can source 200 mA with excellent transient performance. This device has an output range of 0.8 V to 3.3 V with a typical 1% accuracy.
