TPS7A1011PYKAR


YeeHing #: Y012-TPS7A1011PYKAR
Inventory: 7800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS7A1011PYKAR Texas Instruments - Yeehing Electronics

300-mA, low-VIN (0.75-V), ultra-low-IQ, low-dropout voltage regulator with enable

Pricing (USD)

Quantity Unit Price
1 — 99 0.405
100 — 249 0.275
250 — 999 0.212
1,000 + 0.10

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LDO Voltage Regulators
RoHS Y
Mounting Style SMD/SMT

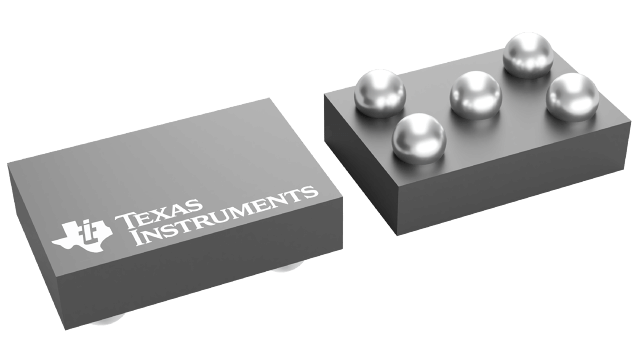

Package / Case DSBGA-5
Output Voltage 1.1 V
Output Current 300 mA
Number of Outputs 1 Output
Polarity Positive
Quiescent Current 1.6 uA
Input Voltage MAX 3.3 V
Input Voltage MIN 0.75 V
Output Type Fixed
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Dropout Voltage 70 mV
Series TPS7A10
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Product LDO Regulators
Type Single Channel LDO
Brand Texas Instruments
Dropout Voltage - Max 70 mV
Output Voltage Range -
PSRR / Ripple Rejection - Typ 60 dB
Voltage Regulation Accuracy 1.5 %
Development Kit TPS7A10EVM-004
Ib - Input Bias Current 6 uA
Line Regulation 0.001 %/V
Load Regulation 0.2 %/A
Product Type LDO Voltage Regulators
Factory Pack Quantity 12000
Subcategory PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

TPS7A1011PYKAR Datasheet

More Information

The TPS7A10 is an ultra-small, low quiescent current, low-dropout regulator (LDO) that can source 300 mA with an outstanding ac performance (load and line transient responses). This device has an input range of 0.75 V to 3.3 V, and output range of 0.5 V to 3.0 V with a very high accuracy of 1.5% over load, line and temperature. This performance is ideal for powering the lower core voltages of the modern MCUs and analog sensors.
