Texas Instruments

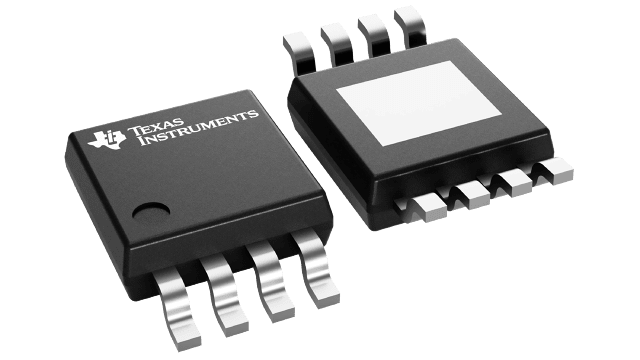

TPS7A1633DGNT
TPS7A1633DGNT
Regular price
$1.08 USD
Regular price
Sale price
$1.08 USD
Unit price
per
Couldn't load pickup availability
TPS7A1633DGNT Texas Instruments - Yeehing Electronics
100-mA, 60-V, ultra-low-IQ, low-dropout (LDO) voltage regulator with power good and enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.103 |
| 100 — 249 | 2.719 |
| 250 — 999 | 1.906 |
| 1,000 + | 1.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-8 |
| Output Voltage | 3.3 V to 5 V |
| Output Current | 100 mA |
| Input Voltage MAX | 60 V |
| Input Voltage MIN | 3 V |
| Output Type | Adjustable, Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 60 mV |
| Series | TPS7A1633 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 50 dB |
| Line Regulation | 1 % |
| Load Regulation | 1 % |
| Moisture Sensitive | Yes |
| Operating Supply Current | 5 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000861 oz |
For more information, please refer to datasheet
Documents
| TPS7A1633DGNT Datasheet |
More Information
The TPS7A16 family of ultralow power, low-dropout (LDO) voltage regulators offers the benefits of ultra-low quiescent current, high input voltage and miniaturized, high thermal-performance packaging.
