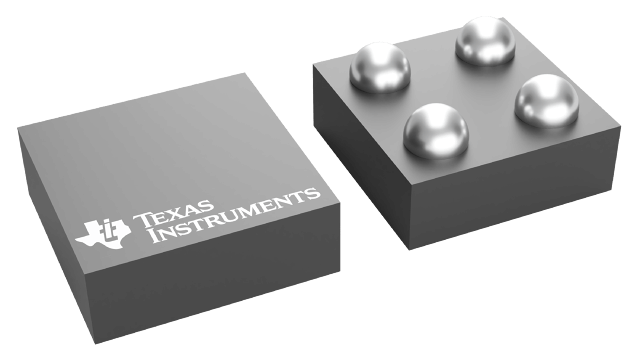

TPS7A2022PYCKR


YeeHing #: Y012-TPS7A2022PYCKR
Inventory: 5600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS7A2022PYCKR Texas Instruments - Yeehing Electronics

300-mA, ultra-low-noise, low-IQ, low-dropout (LDO) linear regulator with high PSRR

Pricing (USD)

Quantity Unit Price
1 — 99 0.287
100 — 249 0.195
250 — 999 0.151
1,000 + 0.07

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

TPS7A2022PYCKR Datasheet

More Information

The TPS7A20 is an ultra-small, low-dropout (LDO) linear regulator that can source 300 mA of output current. The TPS7A20 is designed to provide low noise, high PSRR, and excellent load and line transient performance that can meet the requirements of RF and other sensitive analog circuits. Using innovative design techniques, the TPS7A20 offers an ultra-low noise performance without the addition of a noise bypass capacitor. The TPS7A20 also provides the advantage of low quiescent current, which can be ideal for battery-powered applications. With an input voltage range of 1.6 V to 6.0 V and an output range of 0.8 V to 5.5 V, the TPS7A20 can be used for a wide variety of applications. The device uses a precision reference circuit to provide a maximum accuracy of 1.5% over load, line, and temperature variations.
