Description

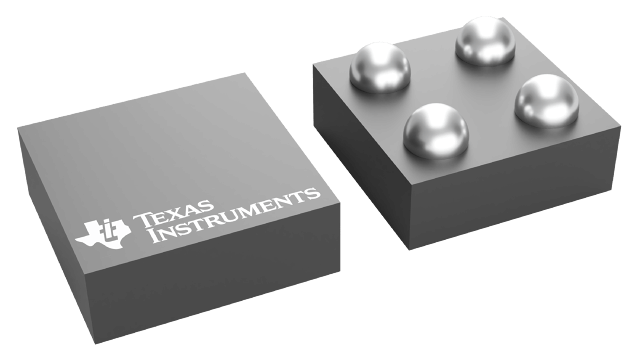

TPS7A20285PYCKR Texas Instruments - Yeehing Electronics
300-mA, ultra-low-noise, low-IQ, low-dropout (LDO) linear regulator with high PSRR
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.287 |
| 100 — 249 | 0.195 |
| 250 — 999 | 0.151 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS7A20285PYCKR Datasheet |
More Information
The TPS7A20 is an ultra-small, low-dropout (LDO) linear regulator that can source 300 mA of output current. The TPS7A20 is designed to provide low noise, high PSRR, and excellent load and line transient performance that can meet the requirements of RF and other sensitive analog circuits. Using innovative design techniques, the TPS7A20 offers an ultra-low noise performance without the addition of a noise bypass capacitor. The TPS7A20 also provides the advantage of low quiescent current, which can be ideal for battery-powered applications. With an input voltage range of 1.6 V to 6.0 V and an output range of 0.8 V to 5.5 V, the TPS7A20 can be used for a wide variety of applications. The device uses a precision reference circuit to provide a maximum accuracy of 1.5% over load, line, and temperature variations.
