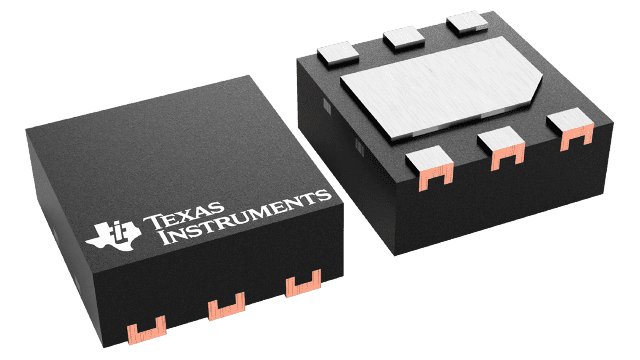

TPS7A3721DRVT Texas Instruments - Yeehing Electronics
1-A, high-accuracy, ultra-low-dropout voltage regulator with reverse current protection & enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.718 |
100 — 249 | 1.419 |
250 — 999 | 1.019 |
1,000 + | 0.54 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | WSON-6 |
Output Voltage | 2.1 V |
Output Current | 1.6 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 5.5 V |
Input Voltage MIN | 2.2 V |
Output Type | Fixed |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 130 mV |
Series | TPS7A3721 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
Dropout Voltage - Max | 200 mV |
PSRR / Ripple Rejection - Typ | 58 dB |
Voltage Regulation Accuracy | 1 % |
Line Regulation | 0.01 %/V |
Load Regulation | 3 mV |
Moisture Sensitive | Yes |
Operating Supply Current | 400 uA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
TPS7A3721DRVT Datasheet |
More Information
The TPS7A37 family of linear low-dropout (LDO) voltage regulators uses an NMOS pass element in a voltage-follower configuration. This topology is relatively insensitive to output capacitor value and ESR, allowing a wide variety of load configurations. Load transient response is excellent, even with a small 1-µF ceramic output capacitor. The NMOS topology also allows very low dropout.
