Description

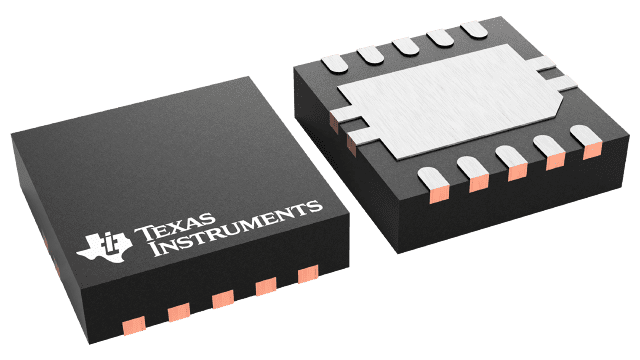

TPS7A3901DSCR Texas Instruments - Yeehing Electronics
150-mA, 33-V, low-noise, high-PSRR, dual-channel positive & negative low-dropout voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.562 |
100 — 249 | 2.904 |
250 — 999 | 2.283 |
1,000 + | 1.36 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | WSON-10 |
Output Voltage | 1.2 V to 30 V, - 30 V to 0 V |
Output Current | 150 mA |
Number of Outputs | 2 Output |
Polarity | Negative, Positive |
Quiescent Current | 0.075 mA |
Input Voltage MAX | 33 V |
Input Voltage MIN | 3.3 V |
Output Type | Adjustable |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 238 mV |
Series | TPS7A39 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Product | LDO Voltage Regulators |
Brand | Texas Instruments |
Dropout Voltage - Max | 300 mV at 150 mA |
PSRR / Ripple Rejection - Typ | 69 dB |
Line Regulation | 0.035 %/V |
Load Regulation | - 0.09 %/V |
Moisture Sensitive | Yes |
Operating Supply Current | 1.05 A |
Product Type | LDO Voltage Regulators |
Reference Voltage | 1.19 V |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
TPS7A3901DSCR Datasheet |
More Information
The TPS7A39 device is a dual, monolithic, high-PSRR, positive and negative low-dropout (LDO) voltage regulator capable of sourcing (and sinking) up to 150 mA of current. The regulated outputs can be independently and externally adjusted to symmetrical or asymmetrical voltages, making this device an ideal dual, bipolar power supply for signal conditioning.
