Texas Instruments
TPS7A3901DSCT
TPS7A3901DSCT
Regular price
$1.63 USD
Regular price
Sale price
$1.63 USD
Unit price
per
Couldn't load pickup availability
TPS7A3901DSCT Texas Instruments - Yeehing Electronics
150-mA, 33-V, low-noise, high-PSRR, dual-channel positive & negative low-dropout voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.274 |
| 100 — 249 | 3.485 |
| 250 — 999 | 2.739 |
| 1,000 + | 1.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

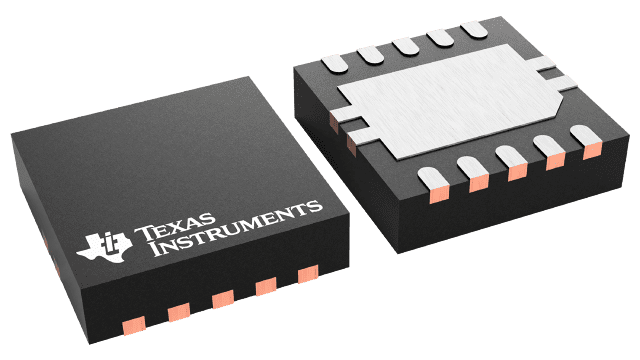

| Package / Case | WSON-10 |
| Output Voltage | Adj |
| Output Current | 150 mA |
| Number of Outputs | 2 Output |
| Input Voltage MAX | 33 V |
| Input Voltage MIN | 3.3 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 238 mV |
| Series | TPS7A39 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LDO Regulators |
| Type | Positive and Negative LDO |
| Brand | Texas Instruments |
| Output Voltage Range | - 30 V to + 30 V |
| PSRR / Ripple Rejection - Typ | 69 dB |
| Voltage Regulation Accuracy | 2.5 % |
| Development Kit | TPS7A39EVM-865 |
| Line Regulation | 0.035 %/V, 0.125 %/V |
| Load Regulation | - 0.09 %/V, 0.715 %/V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.05 A |
| Product Type | LDO Voltage Regulators |
| Reference Voltage | 1.19 V |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000621 oz |
For more information, please refer to datasheet
Documents
| TPS7A3901DSCT Datasheet |
More Information
The TPS7A39 device is a dual, monolithic, high-PSRR, positive and negative low-dropout (LDO) voltage regulator capable of sourcing (and sinking) up to 150 mA of current. The regulated outputs can be independently and externally adjusted to symmetrical or asymmetrical voltages, making this device an ideal dual, bipolar power supply for signal conditioning.
