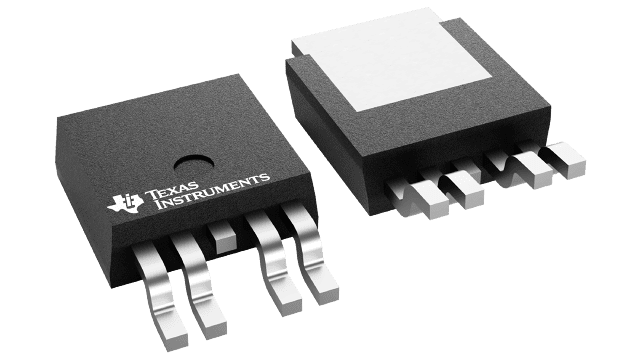

TPS7A6150QKVURQ1 Texas Instruments - Yeehing Electronics

Automotive 300-mA, off-battery (40-V), low-IQ, low-dropout voltage regulator with enable

Pricing (USD)

Quantity	Unit Price
1 — 99	2.444
100 — 249	2.142
250 — 999	1.502
1,000 +	0.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-252-5
Output Voltage	5 V
Output Current	300 mA
Number of Outputs	1 Output
Input Voltage MAX	40 V
Input Voltage MIN	5.3 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	300 mV
Qualification	AEC-Q100
Series	TPS7A6150-Q1
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Product	LDO Regulators
Type	Low Quiescent Current
Brand	Texas Instruments
Dropout Voltage - Max	500 mV
Output Voltage Range	-
PSRR / Ripple Rejection - Typ	30 dB
Line Regulation	15 mV
Load Regulation	25 mV
Moisture Sensitive	Yes
Operating Supply Current	20 uA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.011640 oz

For more information, please refer to datasheet

Documents

TPS7A6150QKVURQ1 Datasheet

More Information

The TPS7A60-Q1 and TPS7A61-Q1 comprise a family of low-dropout linear voltage regulators designed for low power consumption and quiescent current less than 25 µA in light-load applications. These devices feature integrated overcurrent protection and are designed to achieve stable operation even with low-ESR ceramic capacitors. Power-on-reset delay is implemented during device start-up to indicate that the output voltage is stable and in regulation. The power-on-reset delay is fixed (250 µs typical), and can also be programmed by an external capacitor. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold-crank conditions. Because of these features, these devices are well-suited in power supplies for various automotive applications.
