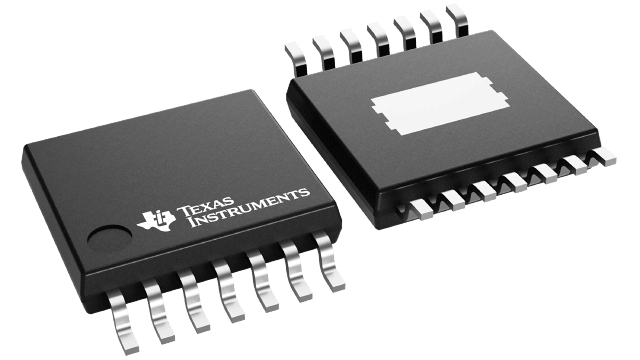

TPS7A6301QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive 300-mA, off-battery (40-V), low-IQ, low-dropout voltage regulator with watchdog timer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | None |
| 100 — 249 | None |
| 250 — 999 | None |
| 1,000 + | None |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-14 |
| Output Voltage | 2.5 V to 7 V |
| Output Current | 300 mA |
| Input Voltage MAX | 40 V |
| Input Voltage MIN | 4 V |
| Output Type | Adjustable, Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 300 mV |
| Qualification | AEC-Q100 |
| Series | TPS7A6301-Q1 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 60 dB |
| Line Regulation | 20 mV |
| Load Regulation | 35 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 35 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002046 oz |
For more information, please refer to datasheet
Documents
| TPS7A6301QPWPRQ1 Datasheet |
More Information
The TPS7A63-Q1 and TPS7A6401-Q1 are a family of low-dropout linear voltage regulators designed for low power consumption and quiescent current less than 35 µA in light-load applications. These devices, designed to achieve stable operation even with a low-ESR ceramic output capacitor, feature an integrated programmable window watchdog and overcurrent protection. Designers can program the output voltage using external resistors. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold-crank conditions. The power-on-reset delay is fixed (250 µs typical), or an external capacitor can program the delay. Because of such features, these devices are well-suited in power supplies for various automotive applications.
