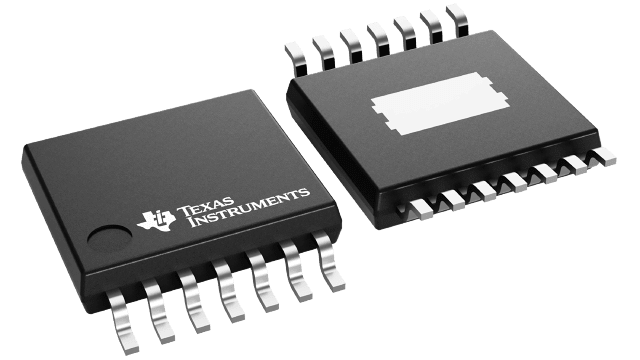

TPS7A6350QPWPRQ1 Texas Instruments - Yeehing Electronics

Automotive 300-mA, off-battery (40-V), low-IQ, low-dropout voltage regulator with watchdog timer

Pricing (USD)

Quantity	Unit Price
1 — 99	1.311
100 — 249	1.149
250 — 999	0.805
1,000 +	0.52

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HTSSOP-14
Output Voltage	2.5 V to 7 V
Output Current	300 mA
Input Voltage MAX	40 V
Output Type	Adjustable, Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	300 mV
Qualification	AEC-Q100
Series	TPS7A6350-Q1
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Brand	Texas Instruments
Development Kit	TPS7A6350EVM
Line Regulation	20 mV
Load Regulation	35 mV
Moisture Sensitive	Yes
Operating Supply Current	35 uA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002046 oz

For more information, please refer to datasheet

Documents

TPS7A6350QPWPRQ1 Datasheet

More Information

The TPS7A63-Q1 and TPS7A6401-Q1 are a family of low-dropout linear voltage regulators designed for low power consumption and quiescent current less than 35 µA in light-load applications. These devices, designed to achieve stable operation even with a low-ESR ceramic output capacitor, feature an integrated programmable window watchdog and overcurrent protection. Designers can program the output voltage using external resistors. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold-crank conditions. The power-on-reset delay is fixed (250 µs typical), or an external capacitor can program the delay. Because of such features, these devices are well-suited in power supplies for various automotive applications.
