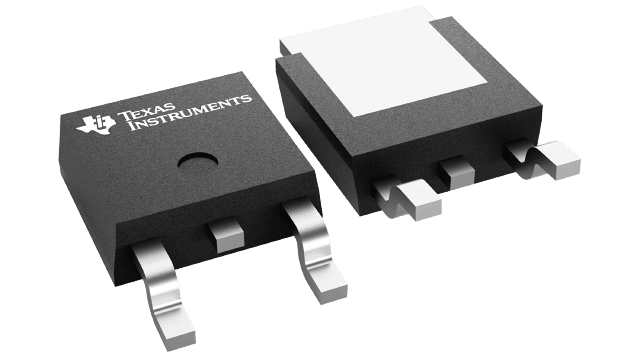

TPS7A6533QKVURQ1 Texas Instruments - Yeehing Electronics
Automotive 300-mA, off-battery (40-V), low-IQ, low-dropout voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.341 |
100 — 249 | 1.933 |
250 — 999 | 1.389 |
1,000 + | 0.73 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | TO-252-3 |
Output Voltage | 3.3 V, 5 V |
Output Current | 300 mA |
Number of Outputs | 1 Output |
Input Voltage MAX | 40 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 300 mV |
Qualification | AEC-Q100 |
Series | TPS7A6533-Q1 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
Dropout Voltage - Max | 300 mV |
Development Kit | TPS7A6550EVM |
Load Regulation | 25 mV |
Moisture Sensitive | Yes |
Operating Supply Current | 20 uA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.139332 oz |
For more information, please refer to datasheet
Documents
TPS7A6533QKVURQ1 Datasheet |
More Information
The TPS7A65-Q1 low-dropout linear voltage regulator is designed for low power consumption and quiescent current less than 25 µA in light-load applications. This device features integrated overcurrent protection and a design to achieve stable operation even with low-ESR ceramic output capacitors. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold crank conditions. Because of these features, this device is well-suited in power supplies for various automotive applications.
