Texas Instruments
TPS7A6550QKVURQ1
TPS7A6550QKVURQ1
Regular price
$0.73 USD
Regular price
Sale price
$0.73 USD
Unit price
per
Couldn't load pickup availability

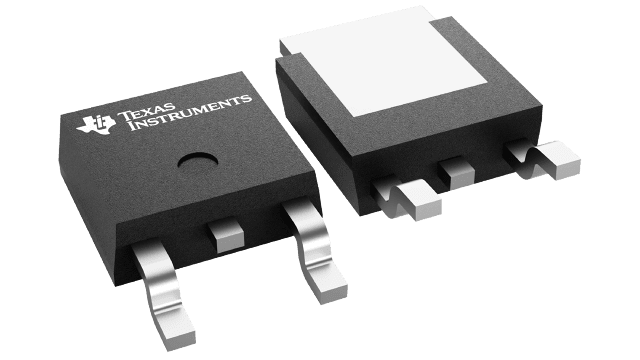

TPS7A6550QKVURQ1 Texas Instruments - Yeehing Electronics
Automotive 300-mA, off-battery (40-V), low-IQ, low-dropout voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.341 |
| 100 — 249 | 1.933 |
| 250 — 999 | 1.389 |
| 1,000 + | 0.73 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-252-3 |
| Output Voltage | 5 V |
| Output Current | 300 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 40 V |
| Input Voltage MIN | 4 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 300 mV |
| Qualification | AEC-Q100 |
| Series | TPS7A6550-Q1 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LDO Regulators |
| Type | Linear Regulator |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 500 mV |
| PSRR / Ripple Rejection - Typ | 60 dB |
| Line Regulation | 20 mV |
| Load Regulation | 35 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 20 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.139332 oz |
For more information, please refer to datasheet
Documents
| TPS7A6550QKVURQ1 Datasheet |
More Information
The TPS7A65-Q1 low-dropout linear voltage regulator is designed for low power consumption and quiescent current less than 25 µA in light-load applications. This device features integrated overcurrent protection and a design to achieve stable operation even with low-ESR ceramic output capacitors. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold crank conditions. Because of these features, this device is well-suited in power supplies for various automotive applications.
