Texas Instruments
TPS7A6601QDGNRQ1
TPS7A6601QDGNRQ1
Regular price
$4.79 USD
Regular price
Sale price
$4.79 USD
Unit price
per
Couldn't load pickup availability

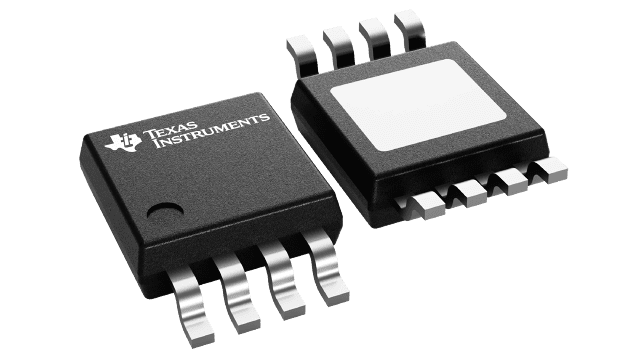

TPS7A6601QDGNRQ1 Texas Instruments - Yeehing Electronics
Automotive 150-mA, off-battery (40-V), low-IQ, low-dropout voltage regulator with power good
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.64 |
| 100 — 249 | 5.31 |
| 250 — 999 | 4.98 |
| 1,000 + | 4.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-8 |
| Output Voltage | Adj |
| Output Current | 150 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 40 V |
| Input Voltage MIN | 4 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 300 mV |
| Qualification | AEC-Q100 |
| Series | TPS7A6601-Q1 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LDO Regulators |
| Type | High Voltage Ultralow Quiescent Current |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 450 mV |
| Output Voltage Range | 1.5 V to 5 V |
| PSRR / Ripple Rejection - Typ | 40 dB |
| Line Regulation | 5 mV |
| Load Regulation | 20 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 12 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004938 oz |
For more information, please refer to datasheet
Documents
| TPS7A6601QDGNRQ1 Datasheet |
More Information
The TPS7A66-Q1 and TPS7A69-Q1 are low-dropout linear regulators designed for up to 40-V Vin operations. With only 12-µA quiescent current at no load, they are quite suitable for standby microprocessor control-unit systems, especially in automotive applications.
