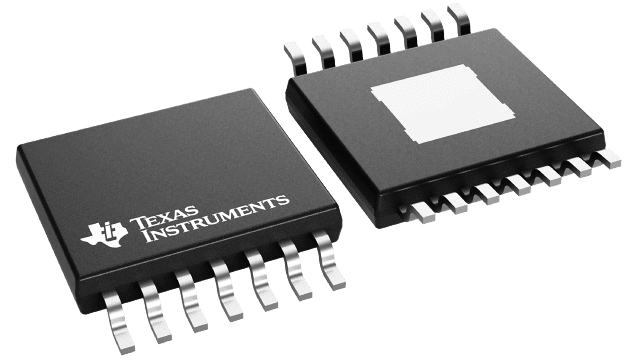

TPS7A7836PWPR Texas Instruments - Yeehing Electronics
120-mA, smart, capacitance-drop, low-dropout (LDO) linear voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.07 |
| 100 — 249 | 1.709 |
| 250 — 999 | 1.228 |
| 1,000 + | 0.65 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS7A7836PWPR Datasheet |
More Information
The TPS7A78 improves the overall efficiency and standby-power in power-supplies in an easy-to-use, non-magnetic approach to AC/DC conversion. The TPS7A78 uses a capacitor-drop architecture to lower the AC source voltage before actively clamping the rectified voltage. The device then regulates this rectified voltage down to the application-specific operating voltage. The unique architecture of the device allows the standby power to be reduced to just a few 10s of milliwatts. The TPS7A78 switched-capacitor stage reduces power losses by stepping down the rectified input voltage by a factor of four and increasing the output-to-input current by the same ratio, as given by PIN ≅ POUT and VIN ≅ VOUT × 4. Compared to a traditional capacitor-drop (cap-drop) stage, this step down reduces input current, thus minimizing the value of the capacitance needed.
