Description

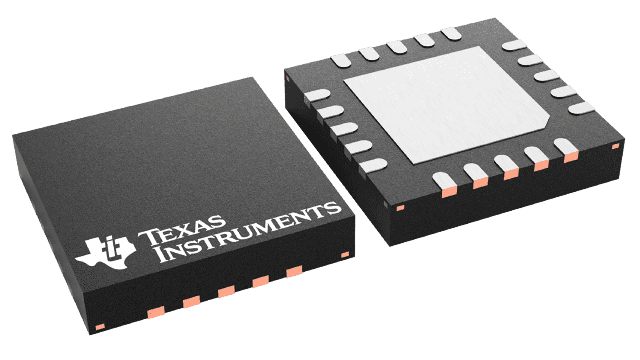

TPS7A8301ARGWR Texas Instruments - Yeehing Electronics
2-A, low-VIN (1.1-V), low-noise, high-accuracy, ultra-low-dropout voltage regulator with power good
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.828 |
| 100 — 249 | 2.478 |
| 250 — 999 | 1.737 |
| 1,000 + | 0.80 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS7A8301ARGWR Datasheet |
More Information
The TPS7A83A is a low-noise (4.4 µVRMS), low-dropout, linear regulator (LDO) capable of sourcing 2 A with only 200 mV of maximum dropout. The TPS7A8300A output voltage is pin programmable from 0.8 V to 3.95 V with a 50-mV resolution, and adjustable from 0.8 V to 5.2 V using an external resistor divider. The TPS7A8301A output voltage is pin programmable from 0.5 V to 2.075 V with a 25-mV resolution, and adjustable from 0.5 V to 5.2 V using an external resistor divider.
