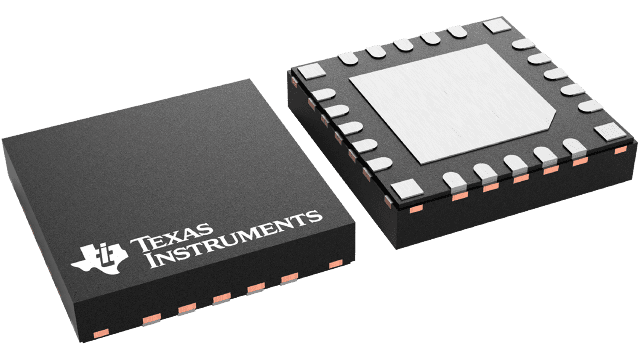

TPS7A8801QRTJRQ1 Texas Instruments - Yeehing Electronics

Automotive 1-A, low-noise, high-accuracy, dual-channel adjustable low-dropout voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	3.111
100 — 249	2.726
250 — 999	1.911
1,000 +	1.08

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	QFN-20
Output Voltage	Adj
Output Current	1 A
Number of Outputs	2 Output
Input Voltage MAX	6.5 V
Input Voltage MIN	1.4 V
Output Type	Adjustable
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 140 C
Dropout Voltage	130 mV
Series	TPS7A88-Q1
Packaging	Reel
Operating Temperature Range	- 40 C to + 140 C
Product	LDO Regulators
Type	Low Noise LDO
Brand	Texas Instruments
Dropout Voltage - Max	250 mV
Output Voltage Range	0.8 V to 5.15 V
PSRR / Ripple Rejection - Typ	40 dB
Voltage Regulation Accuracy	1 %
Line Regulation	0.003 %/V
Load Regulation	0.03 %/A
Moisture Sensitive	Yes
Product Type	LDO Voltage Regulators
Reference Voltage	0.8 V
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.001189 oz

For more information, please refer to datasheet

Documents

TPS7A8801QRTJRQ1 Datasheet

More Information

The TPS7A88-Q1 is a dual, low-noise (4 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 1 A per channel with 250 mV of maximum dropout.
