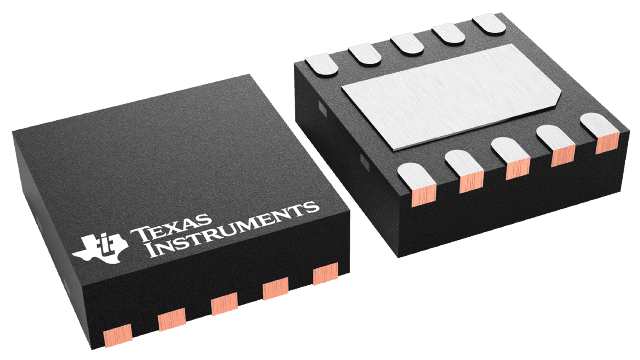

TPS7A9001DSKR Texas Instruments - Yeehing Electronics

500-mA, low-noise, high-PSRR, adjustable ultra-low-dropout voltage regulator with high-accuracy

Pricing (USD)

Quantity	Unit Price
1 — 99	1.126
100 — 249	0.866
250 — 999	0.638
1,000 +	0.36

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SON-10
Output Voltage	Adj
Output Current	500 mA
Number of Outputs	1 Output
Input Voltage MAX	6.5 V
Input Voltage MIN	1.4 V
Output Type	Adjustable
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	75 mV
Series	TPS7A90
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Product	LDO Regulators
Type	Low Noise LDO
Brand	Texas Instruments
Dropout Voltage - Max	200 mV
Output Voltage Range	0.8 V to 5.7 V
PSRR / Ripple Rejection - Typ	30 dB
Voltage Regulation Accuracy	1 %
Development Kit	TPS7A91EVM-831
Line Regulation	0.005 %/V
Load Regulation	0.02 %/A
Moisture Sensitive	Yes
Product Type	LDO Voltage Regulators
Reference Voltage	0.8 V
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000921 oz

For more information, please refer to datasheet

Documents

TPS7A9001DSKR Datasheet

More Information

The TPS7A90 is a low-noise (4.7 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 500 mA with only 100 mV of maximum dropout to 5 V and 200 mV to 5.7 V.
