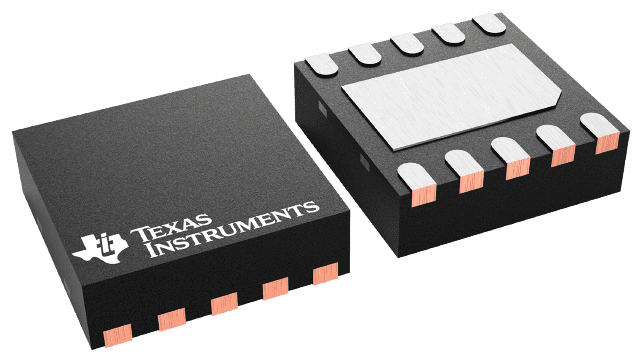

TPS7A9001DSKT Texas Instruments - Yeehing Electronics
500-mA, low-noise, high-PSRR, adjustable ultra-low-dropout voltage regulator with high-accuracy
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.23 |
100 — 249 | 0.946 |
250 — 999 | 0.697 |
1,000 + | 0.29 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SON-10 |
Output Voltage | Adj |
Output Current | 500 mA |
Number of Outputs | 1 Output |
Input Voltage MAX | 6.5 V |
Input Voltage MIN | 1.4 V |
Output Type | Adjustable |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 75 mV |
Series | TPS7A90 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Product | LDO Regulators |
Type | Low Noise LDO |
Brand | Texas Instruments |
Dropout Voltage - Max | 200 mV |
Output Voltage Range | 0.8 V to 5.7 V |
PSRR / Ripple Rejection - Typ | 39 dB |
Voltage Regulation Accuracy | 1 % |
Development Kit | TPS7A91EVM-831 |
Line Regulation | 0.005 %/V |
Load Regulation | 0.02 %/A |
Moisture Sensitive | Yes |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
TPS7A9001DSKT Datasheet |
More Information
The TPS7A90 is a low-noise (4.7 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 500 mA with only 100 mV of maximum dropout to 5 V and 200 mV to 5.7 V.
